2L
HONGJU

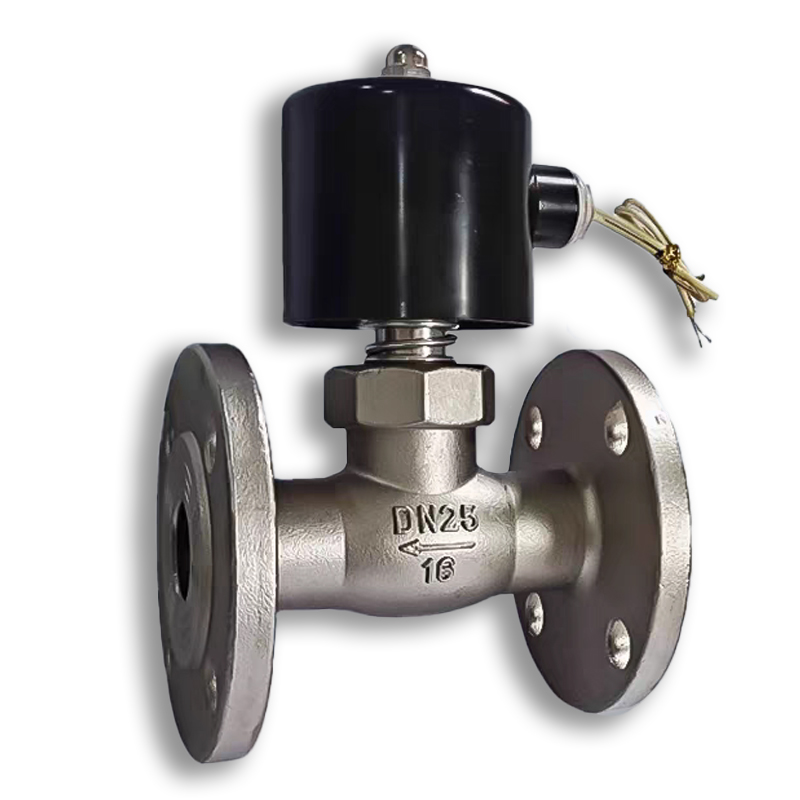

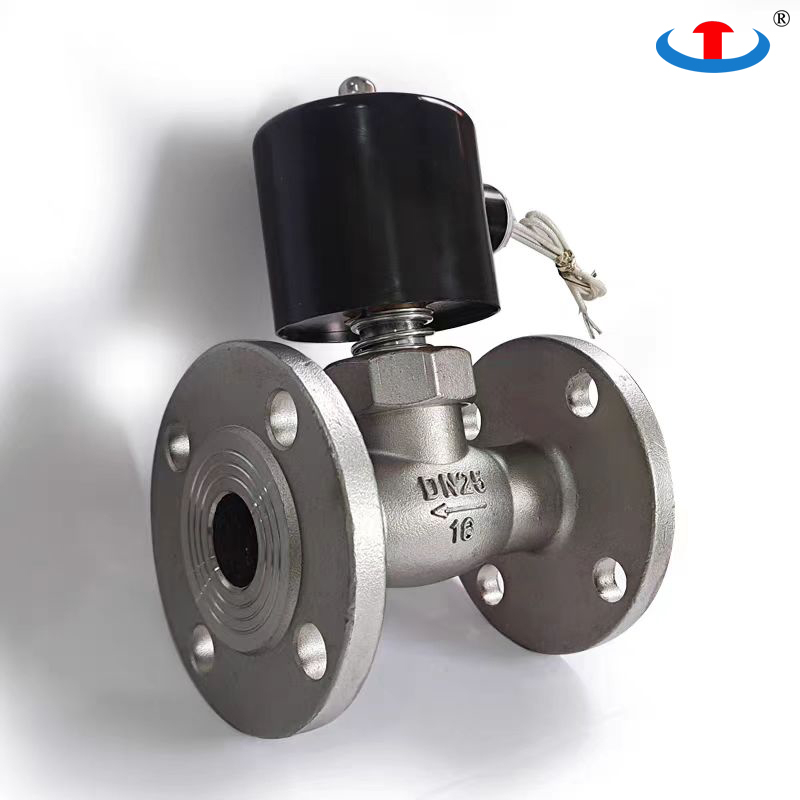

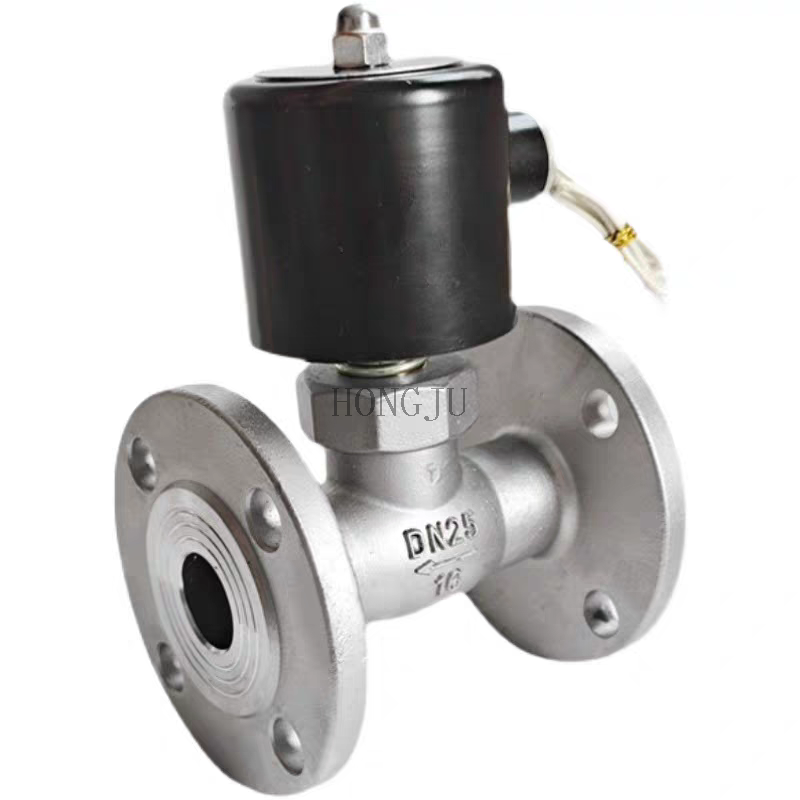

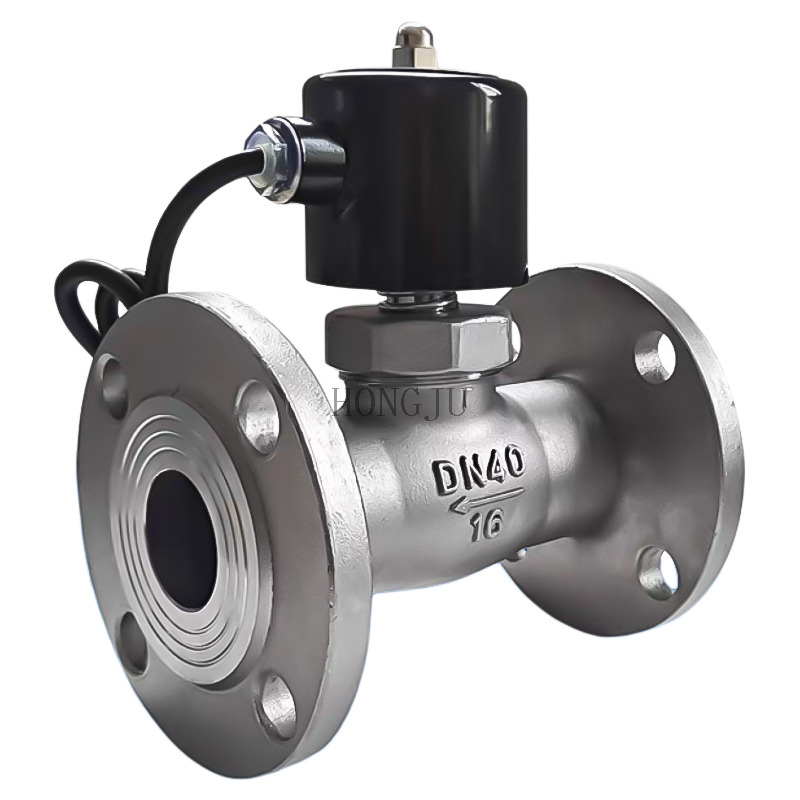

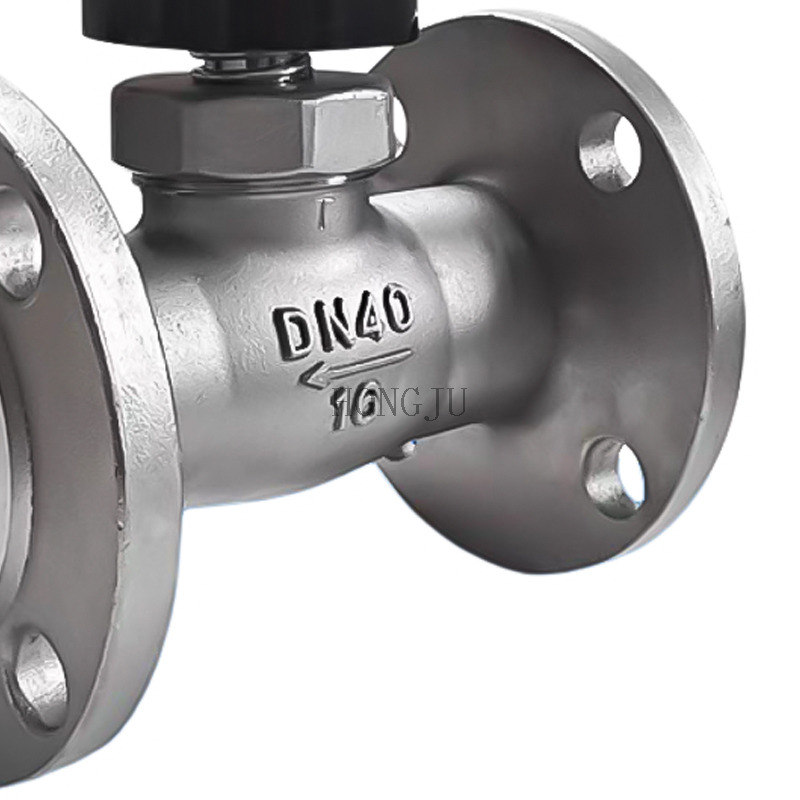

The 2L series piston-type steam solenoid valve is engineered for high-temperature and high-pressure steam applications. Utilizing a durable piston structure, it ensures stable operation, excellent sealing, and extended service life, even under demanding conditions. The valve body is made from stainless steel, and is equipped with heat-resistant sealing materials to withstand steam temperatures up to 12000 °C or higher. Ideal for industrial boilers, heating systems, and process steam control, the 2L series delivers reliable performance and easy maintenance.
Nominal Diameter | Inch Diameter | Material | Length(mm) | Height(mm) | Pressure Resistance | Weight(KG) |
DN15 | G1/2” | 304 | 110 | 177 | 0.05-1.6MPa | 2.55 |
DN20 | G3/4” | 304 | 110 | 177 | 0.05-1.6MPa | 2.75 |
DN25 | G1” | 304 | 125 | 185 | 0.05-1.6MPa | 3.05 |
DN32 | G1-1/4” | 304 | 155 | 210 | 0.05-1.6MPa | 4.4 |
DN40 | G1-1/2” | 304 | 170 | 220 | 0.05-1.6MPa | 5.1 |
| DN50 | G2” | 304 | 195 | 245 | 0.05-1.6MPa | 6.8 |
DN65 | G2-1/2” | 304 | 225 | 285 | 0.05-1.6MPa | 9.8 |
Connection Form | Flange |
Application | Industrial Usage, Water Industrial Usage, Household Usage |
Structure | Piston type |
Protection level | IP55 |
Function | Normally Closed |
Applicable media | Steam,thermal oil,etc |
Origin | China |
Sealing Material | PTFE |
Specification | DN15-DN65 |
Warranty | Valve body – 1 year; Accessories – 3 months (coil excluded) |
Material | Stainless steel |
