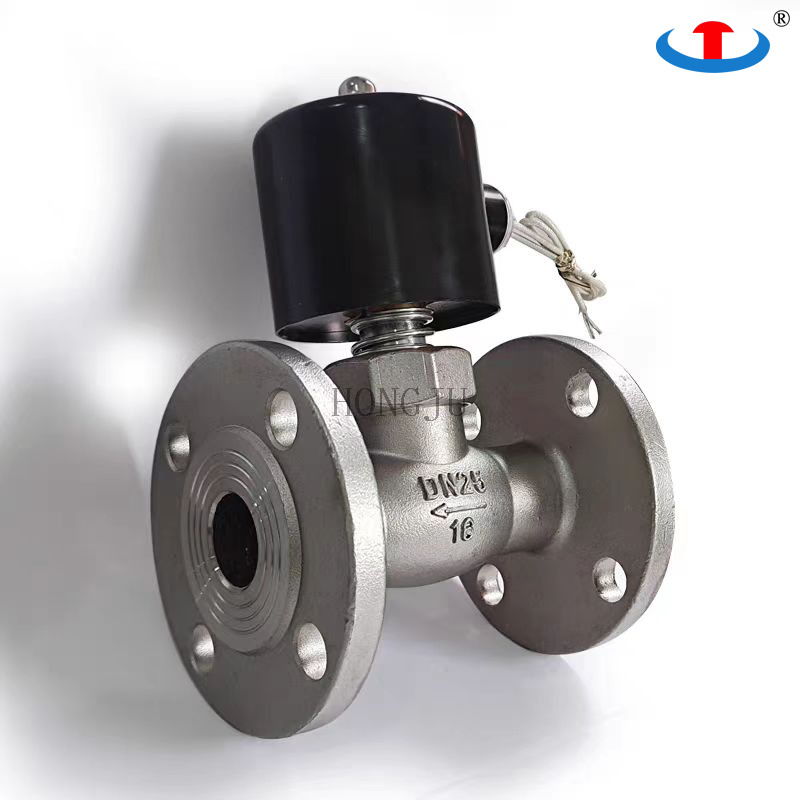

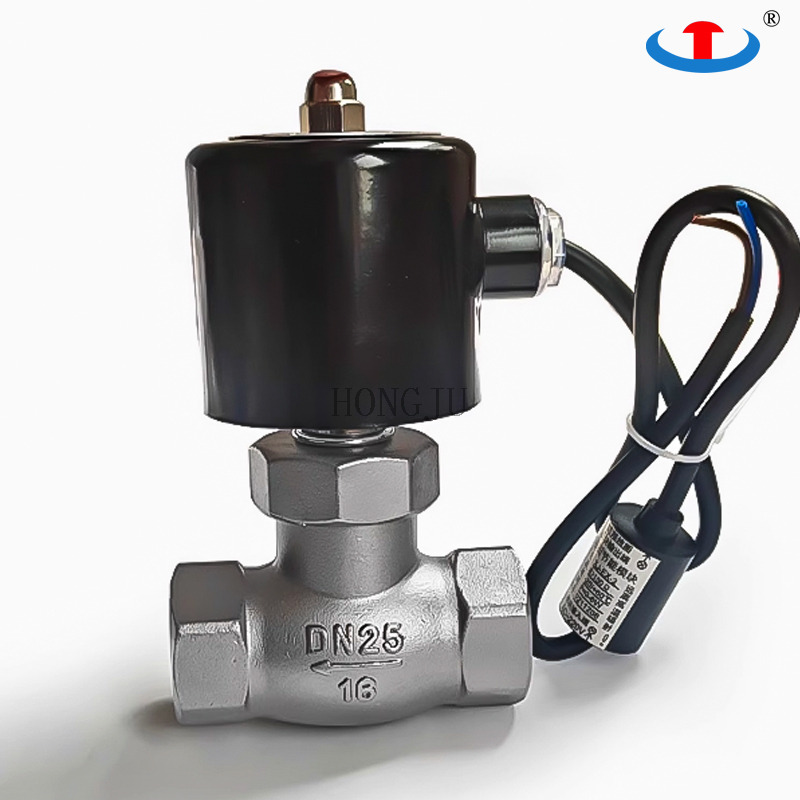

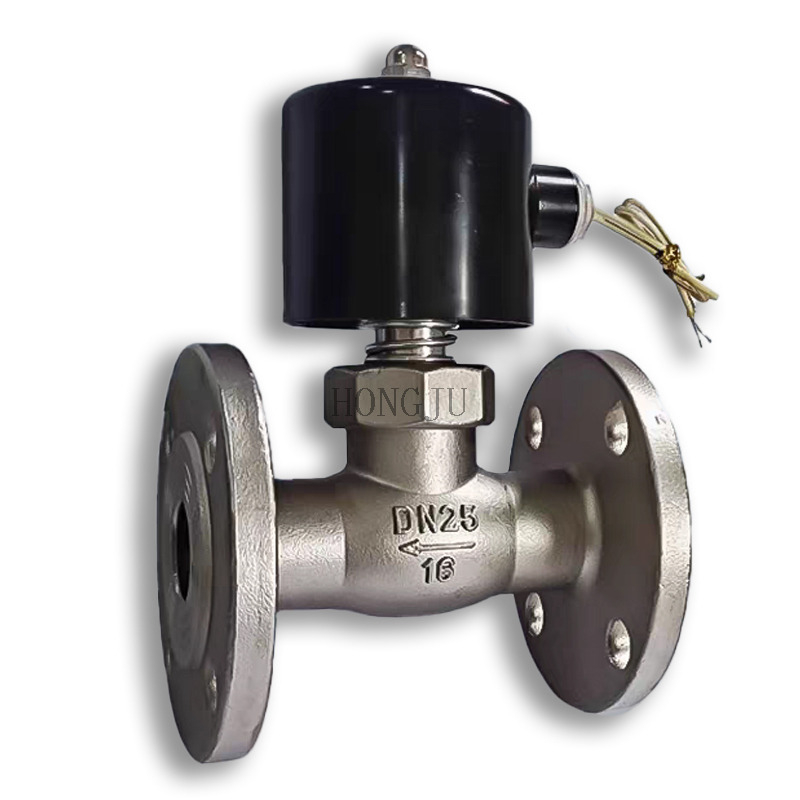

2L Steam Flange&Threaded Solenoid Valve

The 2L Series High Temperature Steam Solenoid Valve is designed for reliable control of steam and heat transfer oil. Featuring a normally closed design, it ensures safety, durability, and stable performance, ideal for industrial heating and thermal fluid applications.

Size:
Material:
Availability:
Quantity:
  • 2L

  • HONGJU

Nominal Diameter

Inch Diameter

Material

Length(mm)

Height(mm)

Pressure Resistance

Weight(KG)

DN15

G1/2”

304

110

177

0.05-1.6MPa

2.55

DN20

G3/4”

304

110

177

0.05-1.6MPa

2.75

DN25

G1”

304

125

185

0.05-1.6MPa

3.05

DN32

G1-1/4”

304

155

210

0.05-1.6MPa

4.4

DN40

G1-1/2”

304

170

220

0.05-1.6MPa

5.1

DN50G2”3041952450.05-1.6MPa6.8

DN65

G2-1/2”

304

225

285

0.05-1.6MPa

9.8



Connection Form

Flange

Application

Industrial Usage, Water Industrial Usage, Household Usage

Structure

Piston type

Protection level

IP55

Function

Normally Closed

Applicable media

Steam,thermal oil,etc

Origin

China

Sealing Material

PTFE

Specification

DN15-DN65

Warranty

Valve body – 1 year;

Accessories – 3 months

(coil excluded)

Material

Stainless steel



The 2L series piston-type steam solenoid valve is engineered for high-temperature and high-pressure steam applications. Utilizing a durable piston structure, it ensures stable operation, excellent sealing, and extended service life, even under demanding conditions. The valve body is made from stainless steel, and is equipped with heat-resistant sealing materials to withstand steam temperatures up to 12000 °C or higher. Ideal for industrial boilers, heating systems, and process steam control, the 2L series delivers reliable performance and easy maintenance.
