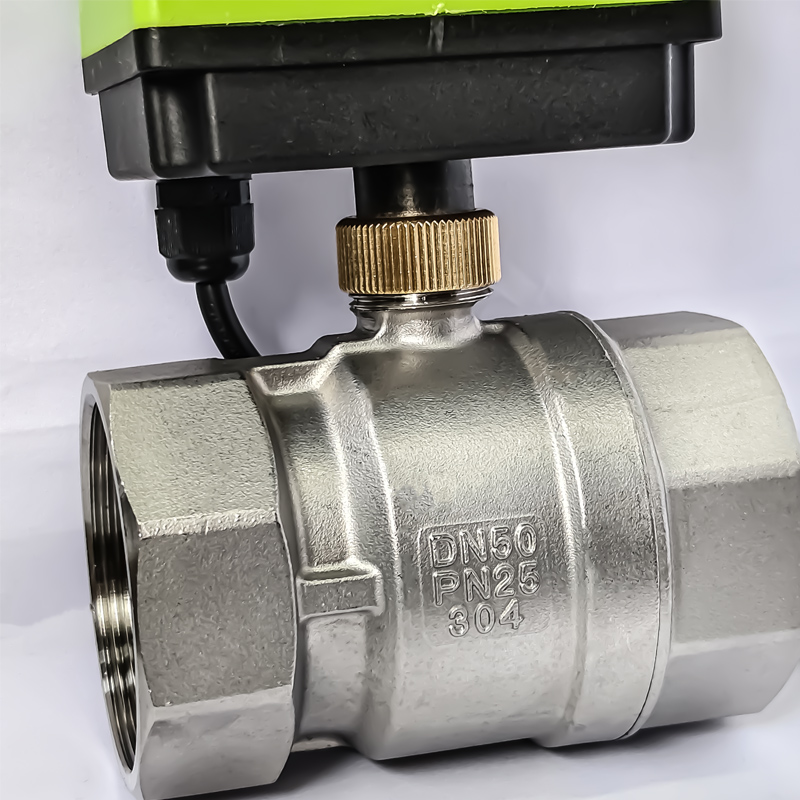

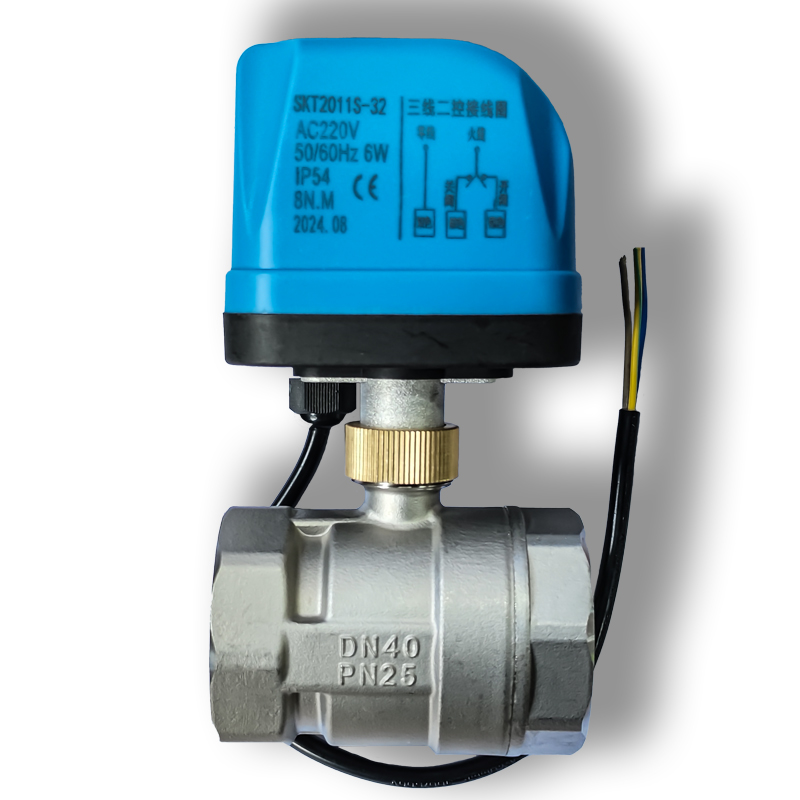

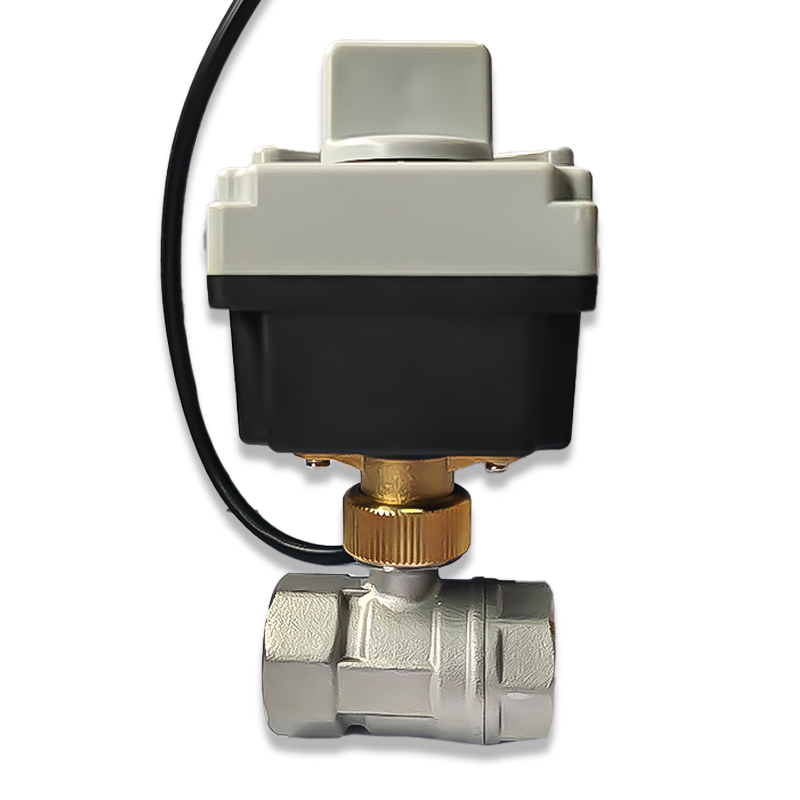

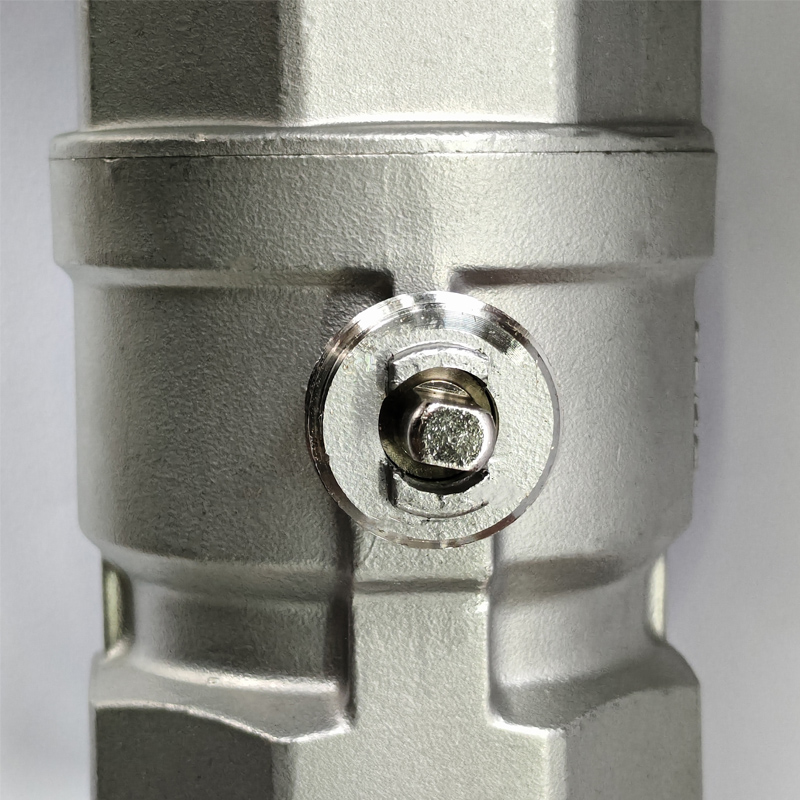

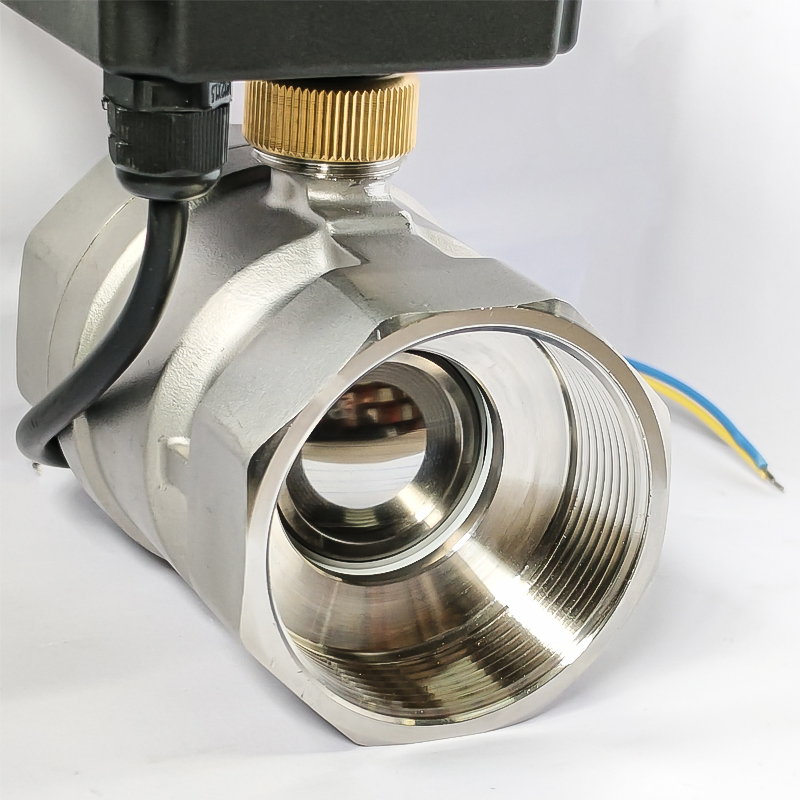

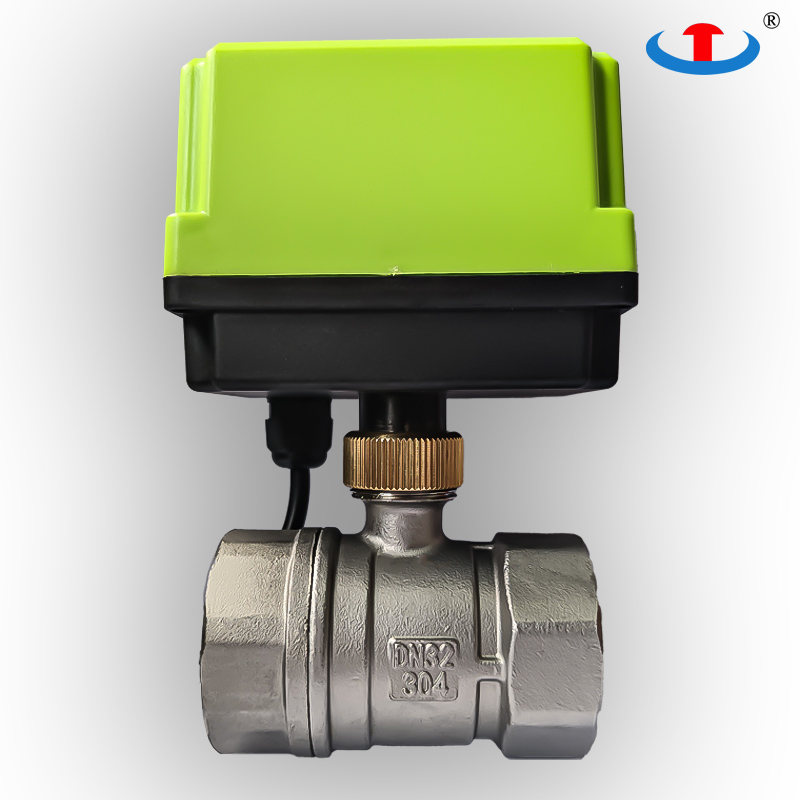

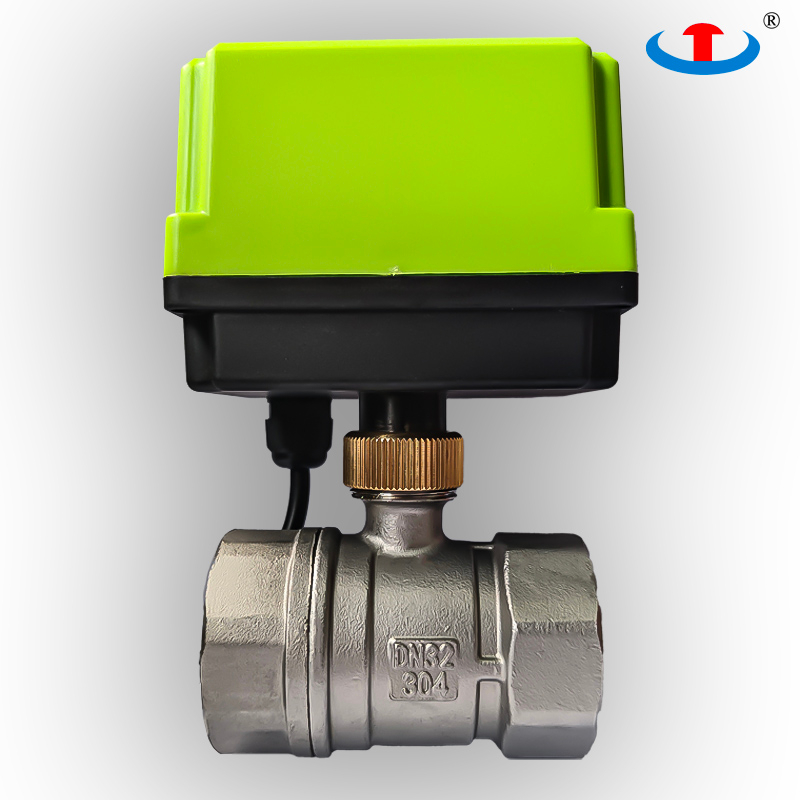

High-Quality Electric Ball Valve

High-quality Electric Ball Valve 220V, three-wire, two-way design for solar systems and underfloor heating. Durable, leak-proof, and easy to install. Provides reliable and precise water flow control, ensuring safe and energy-efficient operation for modern heating and automation applications.
Size:
DN15-DN50
Material:
Stainless steel
Availability:
Quantity:
Inquire Add to Basket

  • CSQK

  • HONGJU

Nominal Diameter

Inch Diameter

Material

Length

(mm)

Height

(mm)

Pressure Resistance

Weight

(KG)

DN15

G1/2”

304

52

122

0-1.6MPa

0.47

DN20

G3/4”

304

58

124

0-1.6MPa

0.51

DN25

G1”

304

65

134

0-1.6MPa

0.6

DN32

G1-1/4”

304

78

140

0-1.6MPa

0.76

DN40

G1-1/2”

304

95

147

0-0.8MPa

1

DN50

G2”

304

108

160

0-0.8MPa

1.42


Connection Form

Threaded

Application

Industrial Usage, Water Industrial Usage, Household Usage

Actuator

Solenoid

Protection level

IP67

Function

Normally Closed or Opened

Applicable media

Water,air

Origin

China

Sealing Material

PTFE

Specification

DN15 - DN50

Warranty

Valve body – 1 year;

Accessories – 3 months

(coil excluded)

Material

Stainless steel


This miniature electric ball valve has an IP67 protection rating and can withstand vacuum and negative pressure.
It has no fixed installation direction and can be mounted in any position.
Equipped with metal gears, it offers reliable performance and long service life, and can remain energized for extended periods without overheating.


Previous:
Next:
High-Quality Ball Valve Electric Ball Valve Two-Way Control Premium Electric Ball Valve Reliable Underfloor Heating Valve Advanced Electric Valve Control Efficient Two-Way Electric Valve High-Quality Underfloor Heating Control Electric Solenoid Water Valve

Related Products

2W Flanged Explosion-Proof Solenoid Valve
2W Flanged Explosion-Proof Solenoid Valve
2W Sanitary Quick-Install Polished Solenoid Valve
2W Sanitary Quick-Install Polished Solenoid Valve
2W Threaded Solenoid Valve
2W Threaded Solenoid Valve
4V 210-08 Pneumatic Solenoid Valve
4V 210-08 Pneumatic Solenoid Valve

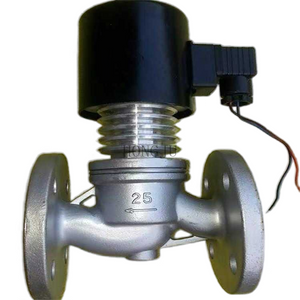

ZCG 304 Stainless Steel Flanged Solenoid Valve Explosion Proof High Temp Steam Thermal Oil
