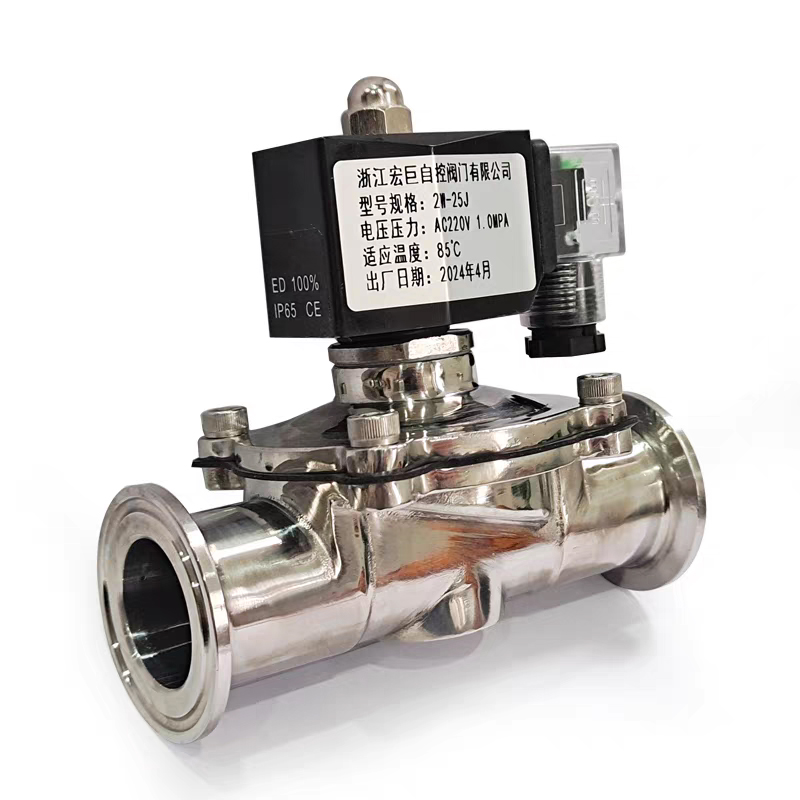

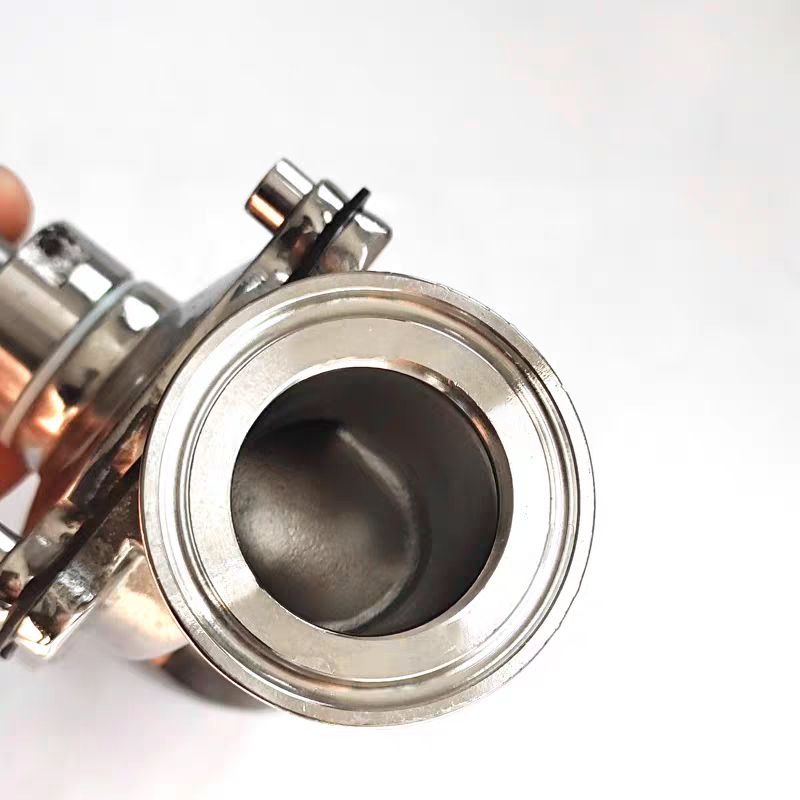

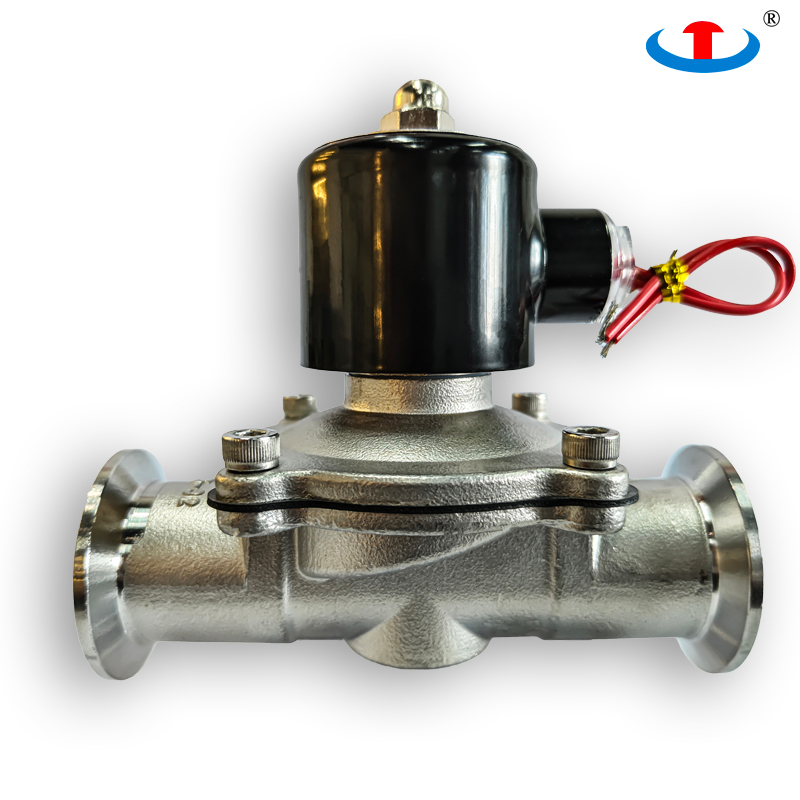

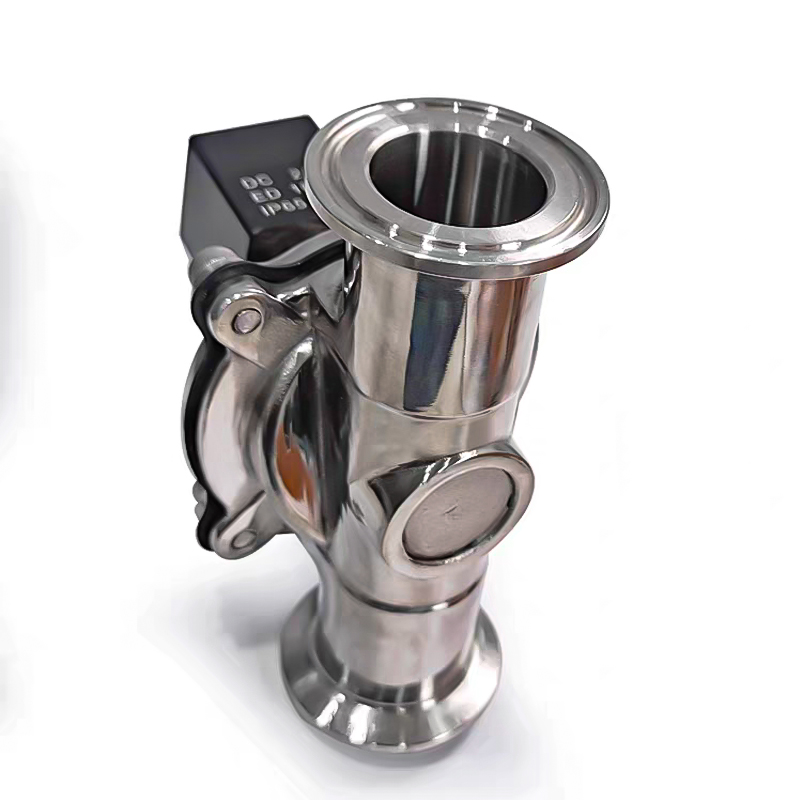

The sanitary solenoid valve is an indispensable component in industries like pharmaceuticals and food processing,
where strict hygiene and high standards are paramount. Crafted from premium 304 and 316 stainless steel, the valve body ensures unparalleled durability and robustness. The sealing material, primarily silicone rubber and polytetrafluoroethylene, provides excellent resistance and longevity.
Nominal Diameter | Inch Diameter | Chuck Outer Diameter | Material | Length (mm) | Height (mm) | Pressure Resistance | Weight (KG) |
DN15 | G1/2” | 50.5 | 304/316L | 100 | 125 | 0-1MPa | 0.75 |
DN20 | G3/4” | 50.5 | 304/316L | 100 | 125 | 0-1MPa | 0.75 |
DN25 | G1” | 50.5 | 304/316L | 130 | 130 | 0-1MPa | 1 |
DN32 | G1-1/4” | 50.5 | 304/316L | 130 | 130 | 0-1MPa | 1 |
DN40 | G1-1/2” | 64 | 304/316L | 155 | 165 | 0-1MPa | 2.4 |
DN50 | G2” | 77.5 | 304/316L | 160 | 177 | 0-1MPa | 2.6 |
Connection Form | Clamp |
Application | Industrial Usage, Water Industrial Usage, Household Usage |
Actuator | Solenoid |
Protection level | IP55 |
Function | Normally Closed or Opened |
Applicable media | Water,air,oil,etc |
Origin | China |
Sealing Material | NBR, FKM,Silicone |
Specification | DN15-DN50 |
Warranty | Valve body – 1 year; Accessories – 3 months (coil excluded) |
