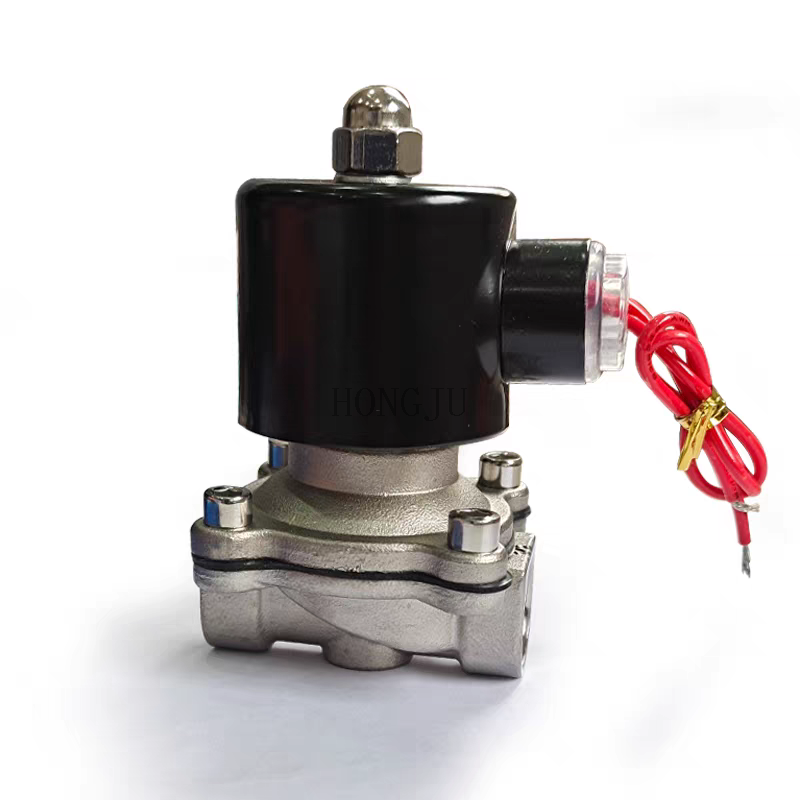

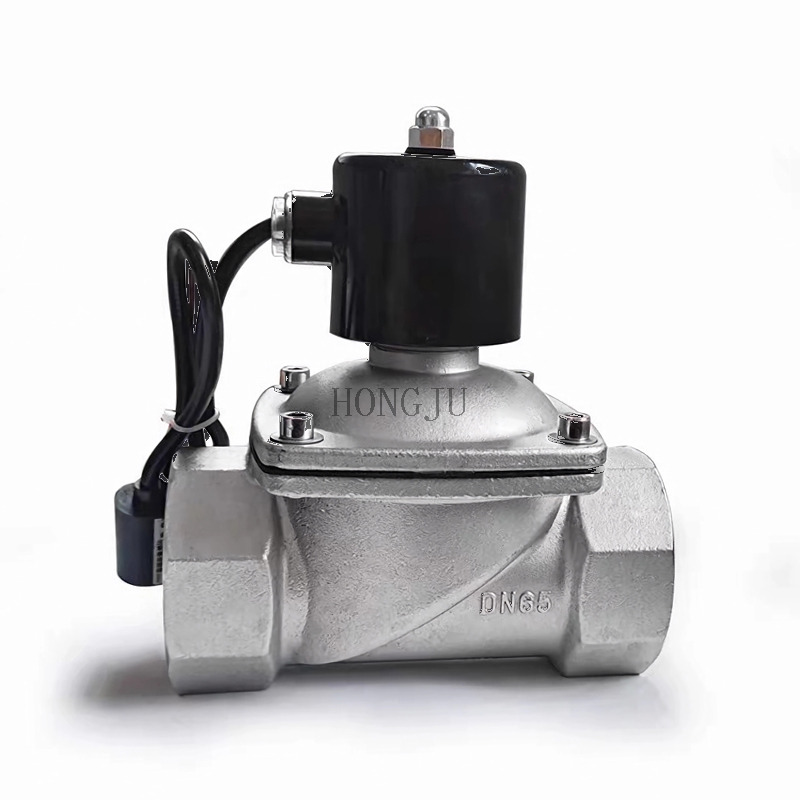

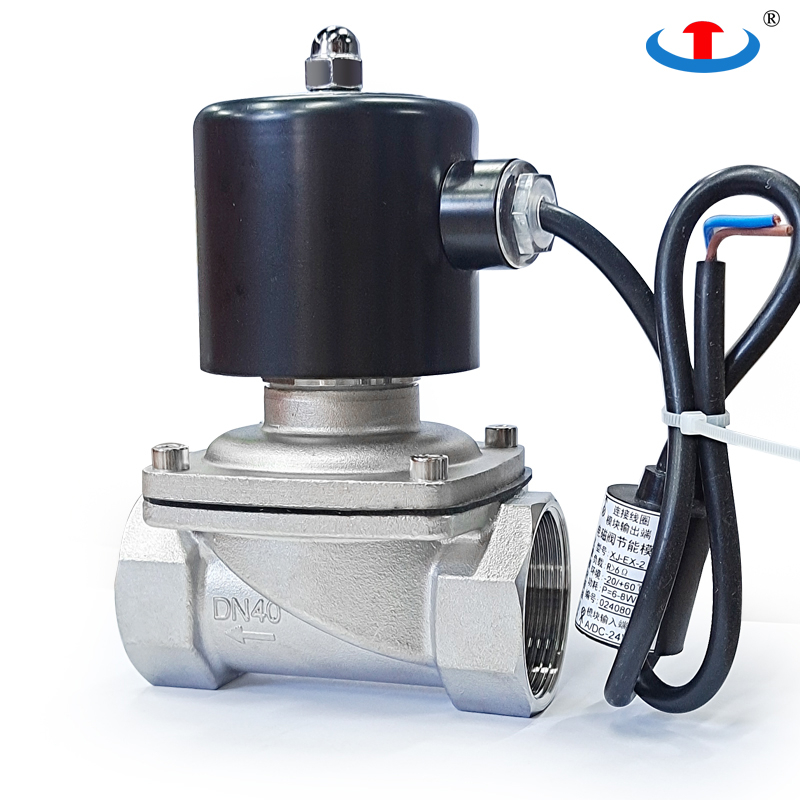

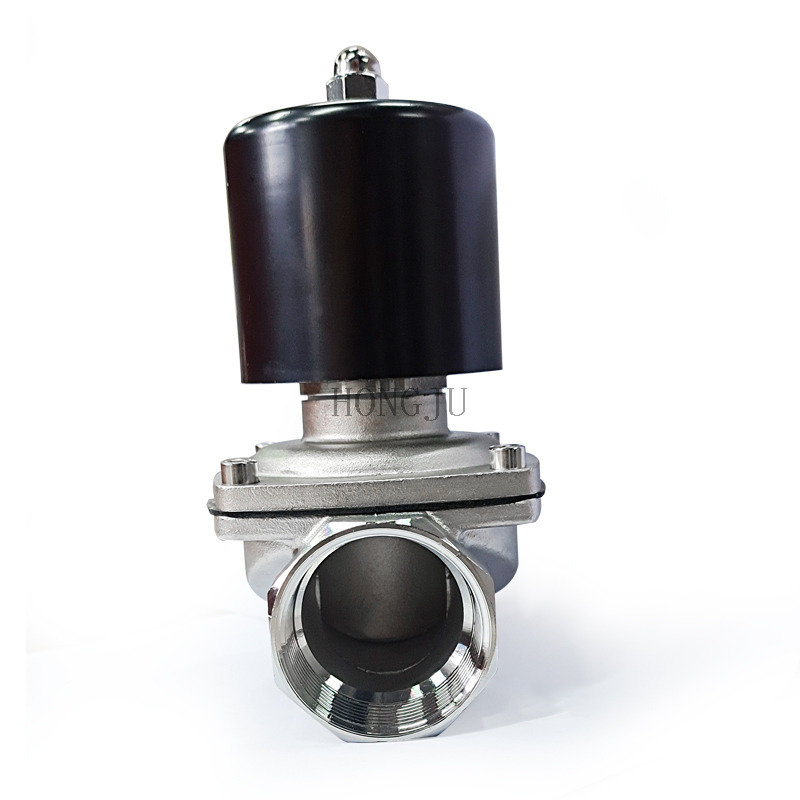

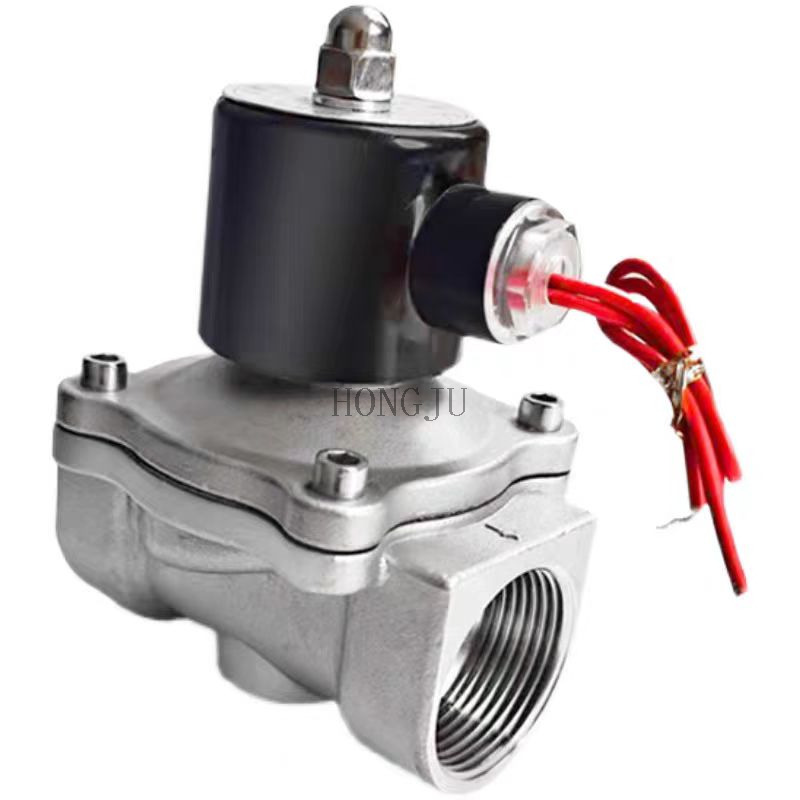

2W Threaded Solenoid Valve

The sanitary solenoid valve is an indispensable component in industries like pharmaceuticals and food processing,
where strict hygiene and high standards are paramount. Crafted from premium 304 and 316 stainless steel, the valve body ensures unparalleled durability and robustness. The sealing material, primarily silicone rubber and polytetrafluoroethylene, provides excellent resistance and longevity.
Size:
DN08-DN100
Material:
Stainless steel
Availability:
Quantity:
Inquire Add to Basket

  • 2W

  • HONGJU

Nominal Diameter

Inch Diameter

Material

Length

(mm)

Height

(mm)

Pressure Resistance

Weight

(KG)

DN08

G1/4”

304

40

75

1.0mpa

0.45

DN10

G3/8”

304

43

84

1.0mpa

0.45

DN15

G1/2”

304

61

105

1.0mpa

0.65

DN15

G1/2”

304/316L

67

109

1.0mpa

0.8

DN20

G3/4”

304

67

111

1.0mpa

0.7

DN20

G3/4”

304/316L

73

116

1.0mpa

0.9

DN25

G1”

304

90

120

1.0mpa

1

DN25

G1”

304/316L

100

125

1.0mpa

1.2

DN32

G1-1/4”

304

95

130

1.0mpa

1.1

DN32

G1-1/4”

304/316L

110

160

1.0mpa

2.1

DN32

G1-1/4”

304

100

134

1.0mpa

1.35

DN40

G1-1/2”

304

106

164

1.0mpa

2.05

DN40

G1-1/2”

304/316L

120

170

1.0mpa

2.4

DN50

G2”

304/316L

127

175

1.0mpa

2.5

DN50

G2”

304

165

180

1.0mpa

3.32

DN65

G2-1/2”

304/316L

180

207

1.0mpa

4.35

DN80

G3”

304

185

215

1.0mpa

4.9

DN100

G4”

304

195

242

1.0mpa

6.25




Connection Form

Threaded

Application

Industrial Usage, Water Industrial Usage, Household Usage

Actuator

Solenoid

Protection level

IP55

Function

Normally Closed or Opened

Applicable media

Water,air,oil,etc

Origin

China

Sealing Material

NBR, FKM,Silicone

Specification

DN08 - DN100

Warranty

Valve body – 1 year;

Accessories – 3 months

(coil excluded)


The 2W series threaded solenoid valve is designed for reliable control of water, air, oil, and other compatible fluids. Made from high-quality brass or stainless steel, it features a compact structure, quick response, and excellent sealing performance. With threaded connections for easy installation, this valve is widely used in industrial automation, irrigation systems, and fluid control applications.
