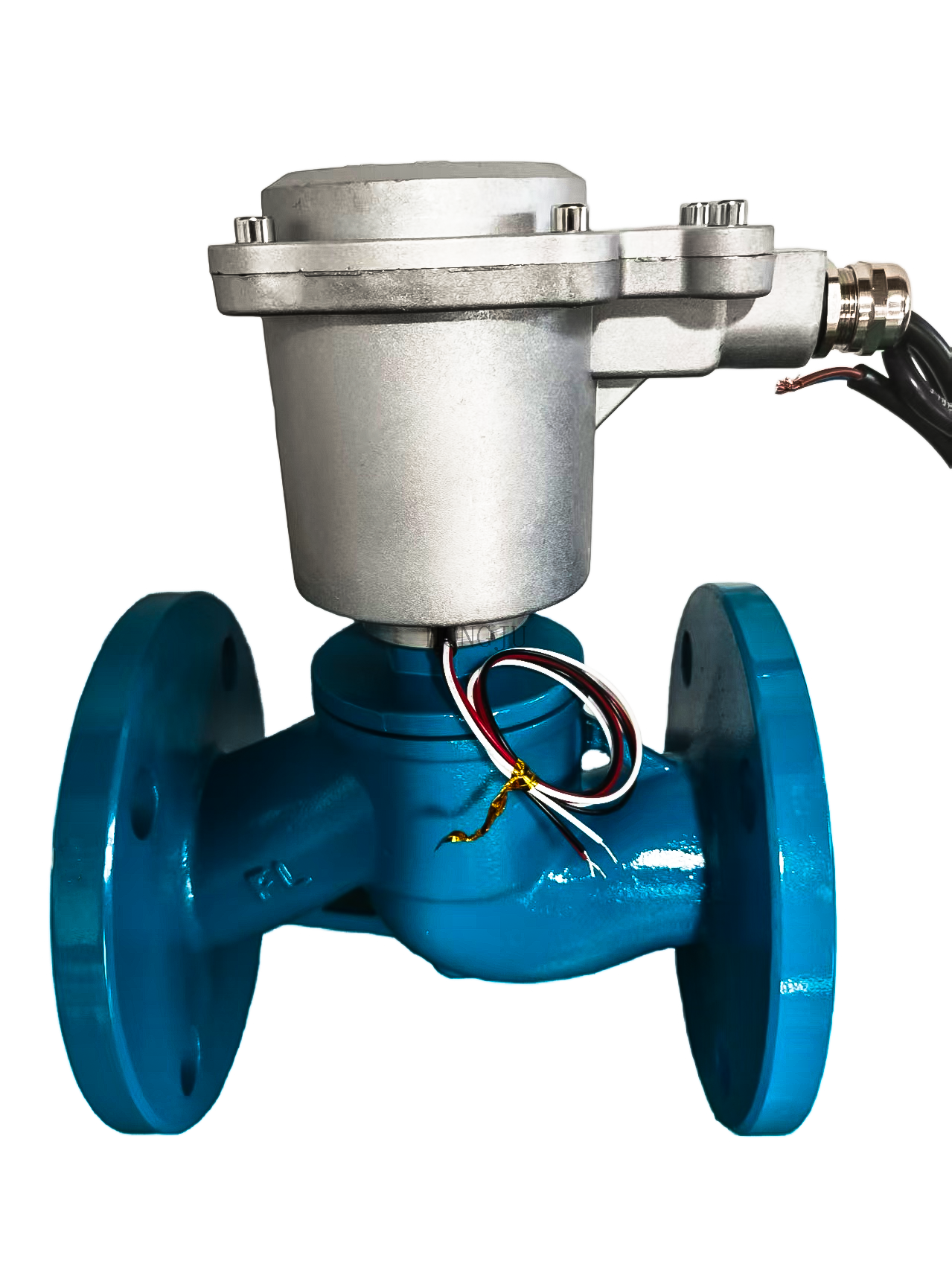

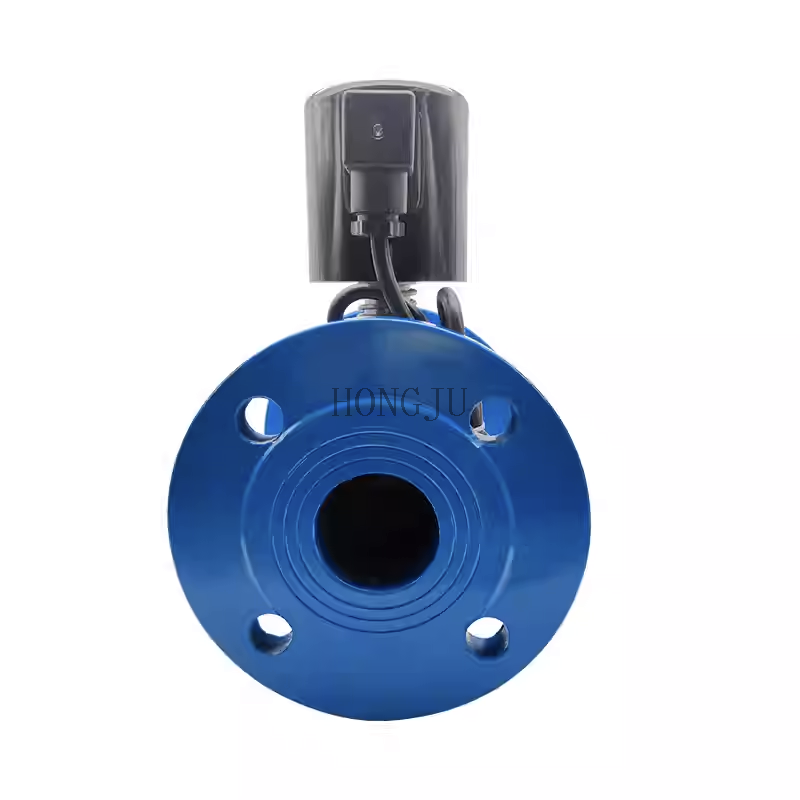

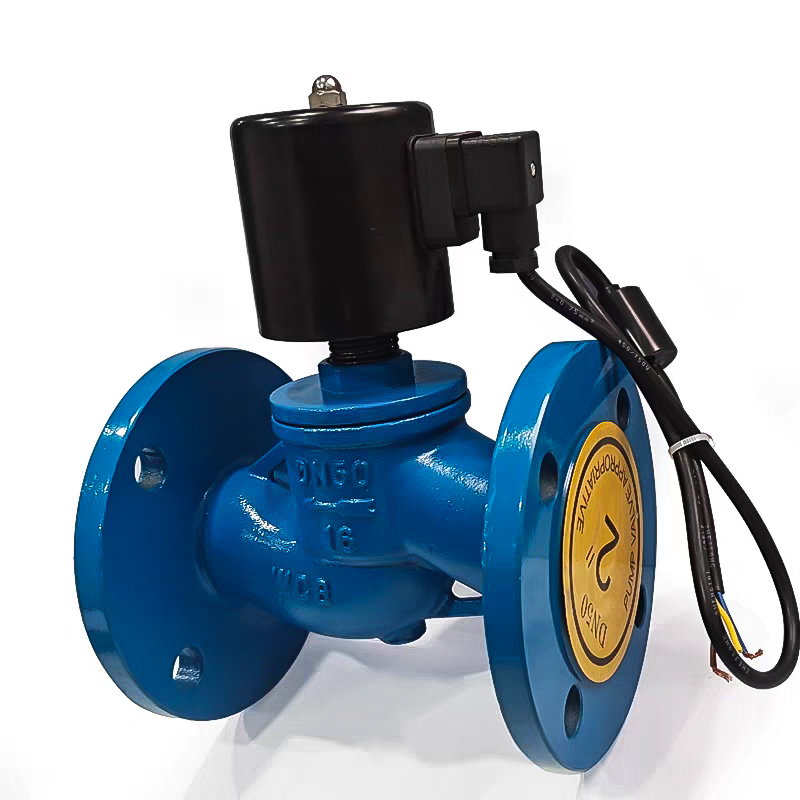

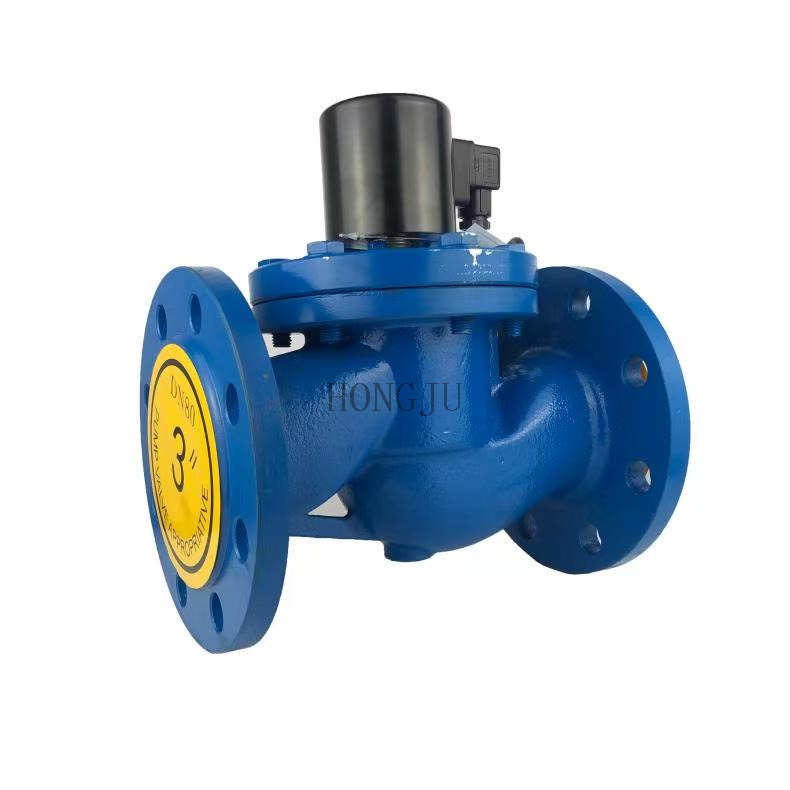

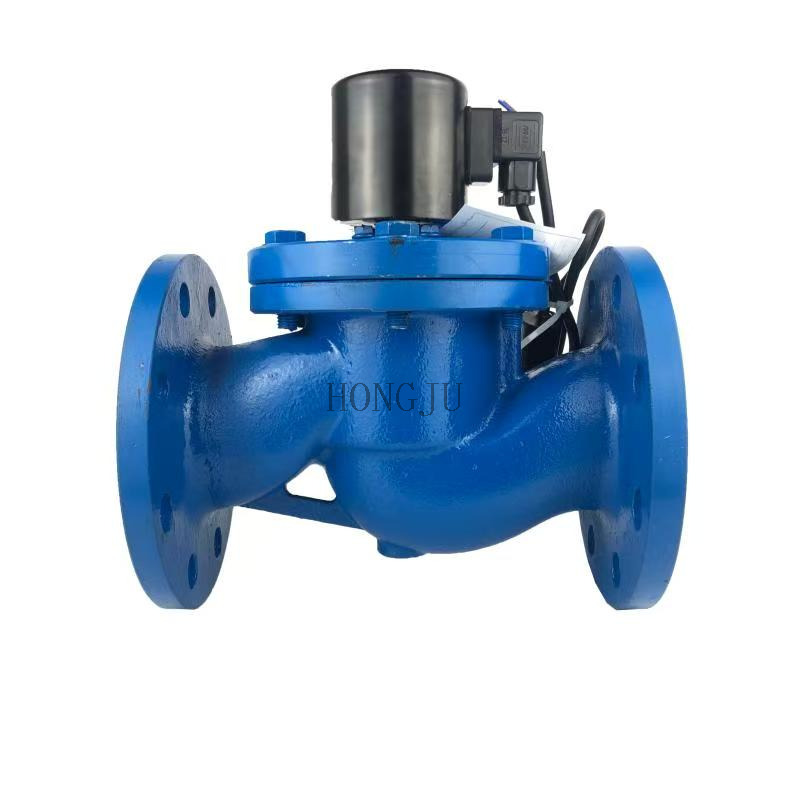

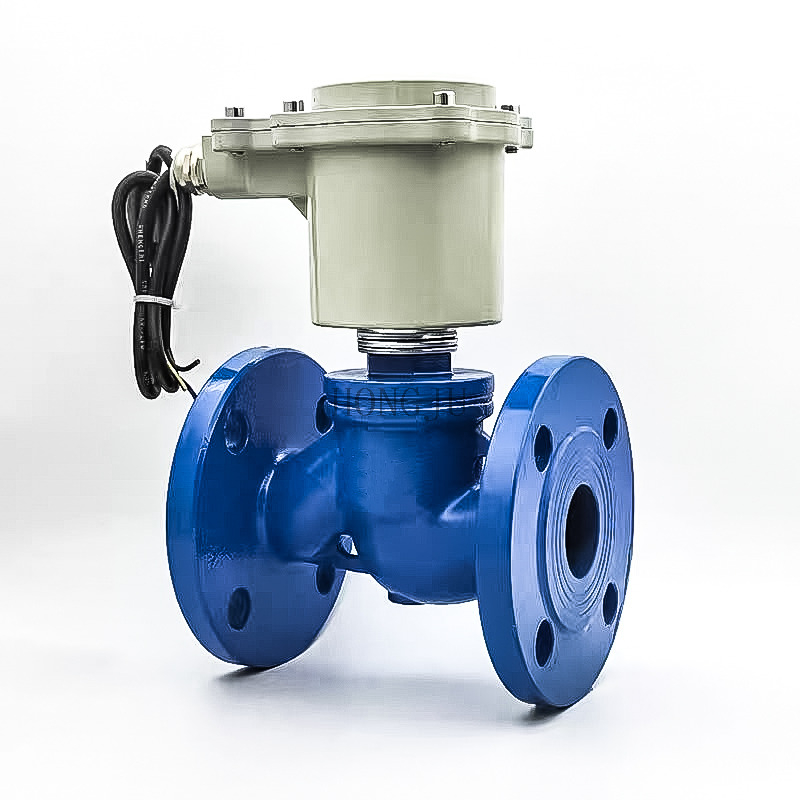

Cast Steel Flanged High Temperature Solenoid Valve

This cast steel flanged solenoid valve is designed for high-temperature applications. It features explosion-proof construction, suitable for controlling water, gas, and oil. The normally closed design ensures reliable safety and efficient flow control in industrial environments.

Size:	DN25-DN300
Material:	Cast steel
Availability:

Quantity:



Inquire Add to Basket

Model:
ZCZP
Brand:
HONGJU

Nominal Diameter	Inch Diameter	Material	Length (mm)	Height (mm)	Pressure Resistance	Weight (KG)
DN25	G1”	WCB cast steel	125	200	0-1.6MPa	3.2
DN32	G1-1/4”	WCB cast steel	150	250	0-1.6MPa	5.3
DN40	G1-1/2”	WCB cast steel	160	248	0-1.6MPa	6
DN50	G2”	WCB cast steel	195	260	0-1.6MPa	7.7
DN65	G2-1/2”	WCB cast steel	240/290	288	0.05-1.6MPa	14
DN80	G3”	WCB cast steel	270/310	305	0.05-1.6MPa	16.5
DN100	G4:	WCB cast steel	320/350	330	0.05-1.6MPa	22.2
DN125	G5”	WCB cast steel	350	390	0.05-1.6MPa	33.3
DN150	G6”	WCB cast steel	420	500	0.05-1.6MPa	50.6
DN200	G8”	WCB cast steel	520	570	0.05-1.6MPa	81.8
DN250	G10”	WCB cast steel	650		0.05-1.6MPa
DN300	G12”	WCB cast steel	750		0.05-1.6MPa

Cast Steel Solenoid Valve Flanged Control Valve Explosion Proof Valve High Temperature Valve Water Control Valve Gas Solenoid Valve Oil Control Valve Normally Closed Valve Industrial Solenoid Valve Heavy Duty Control Valve

Related Products

ZCRB Emergency Gas Shut-Off Valve

ZBSF flange steam solenoid valve

2L Steam Solenoid Valve

Electric Ball Valve

2W Series Diaphragm Brass Water Solenoid Valve Two Way Two Position Outdoor Waterproof IP65 Control Valve

2/2 Way Position Diaphragm Solenoid Valve Direct Acting Brass Water Control Valve

Stainless Steel Flanged Solenoid Valve

Food Grade Polished Solenoid Valve Quick-Fit Clamp Normally Closed Waterproof Control Valve

Mini Brass Electric Ball Valve Two-Wire Control Outdoor Waterproof

Brass Electric Motorized Two Way Ball Valve Normally Open &Closed

2L Steam Flange&Threaded Solenoid Valve

Stainless Steel Mini Electric Ball Valve Brass Manual Control Valve for Air and Water

3-Wire 2-Control Electric Ball Valve

Manual Automatic Integrated Electric Ball Valve

Mini Brass Electric Ball Valve Two-Wire Control Outdoor Waterproof

Three-Wire Two-Control Electric Ball Valve

Connection Form	Flange connection
Application	Industrial Usage, Household Usage
Structure	Piston type
Protection level	IP 55
Function	Normally Opened or Closed
Applicable media	Steam , thermal oil
Origin	China
Sealing Material	PTFE
Specification	DN25 - DN300
Warranty	Valve body – 1 year; Accessories – 3 months (coil excluded)
Material	WCB (Cast steel)

Cast Steel Flanged High Temperature Solenoid Valve
