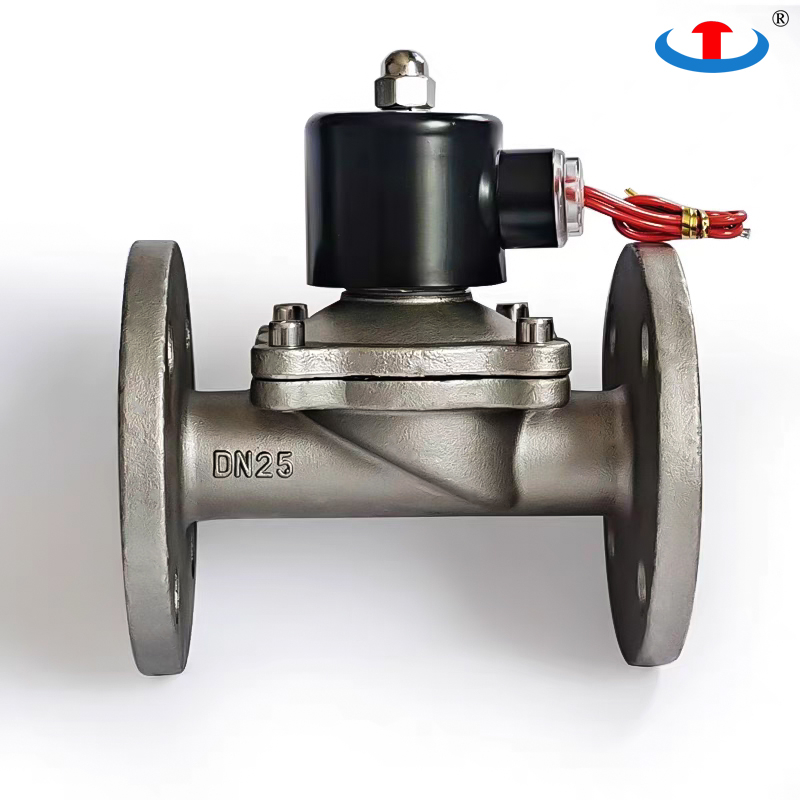

Flanged Stainless Steel Cast Steel Automatic Control Valve for Water Air Oil Media Solenoid Valve

Size:
DN15-DN200
Material:
Stainless steel
Availability:
Quantity:
Inquire Add to Basket

  • 2W

  • HONGJU

Nominal Diameter

Inch Diameter

Material

Length

(mm)

Height

(mm)

Pressure Resistance

Weight

(KG)

DN15

G1/2”

304/316L

108

143

0-1MPa

1.6

DN20

G3/4”

304/316L

108

148

0-1MPa

1.75

DN25

G1”

304

137

155

0-1MPa

2.25

DN25

G1”

304/316L

137

155

0-1MPa

2.65

DN32

G1-1/4”

304

148

171

0-1MPa

3

DN32

G1-1/4”

304/316L

148

200

0-1MPa

3.69

DN40

G1-1/2”

304

155

204

0-1MPa

6.1

DN40

G1-1/2”

304/316L

155

207

0-1MPa

4.82

DN50

G2”

304/316L

170

223

0-1MPa

6.2

DN50

G2”

304

185

228

0-1MPa

6.5

DN65

G2-1/2”

304/316L

225

247

0-1MPa

9

DN65

G2-1/2”

304/316L



0-1MPa


DN80

G3”

304/316L

260

259

0.05-1MPa

12.3

DN80

G3”

304/316L



0.05-1MPa


DN100

G4”

304/316L

320

288

0.05-1MPa

18

DN100

G4”

304/316L



0.05-1MPa


DN125

G5”

304

350

336

0.05-1MPa

27

DN150

G6”

304

420

400

0.05-1MPa

40

DN200

G8”

304

520

480

0.05-1MPa

61







Connection Form

Flange connection

Application

Industrial Usage, Water Industrial Usage, Household Usage

Structure

Diaphragm type

Protection level

IP55

Function

Normally Closed or Opened

Applicable media

Air,gas,water,etc

Origin

China

Sealing Material

NBR, FKM, Silicone

Specification

DN15 - DN200

Warranty

Valve body – 1 year;

Accessories – 3 months

(coil excluded)

Material

Stainless steel,Cast steel


The 2W Flanged Explosion-Proof Solenoid Valve is made of high-quality stainless steel or cast steel, featuring a robust structure and excellent corrosion resistance. Designed with a flanged connection, it ensures stable installation and reliable sealing performance, suitable for various media such as water, air, and oil. Its explosion-proof construction guarantees safe operation in flammable and explosive environments, making it widely used in industries like petroleum, chemical, and metallurgy. The product offers fast response, long service life, and easy maintenance, making it an ideal choice for industrial automation control.
