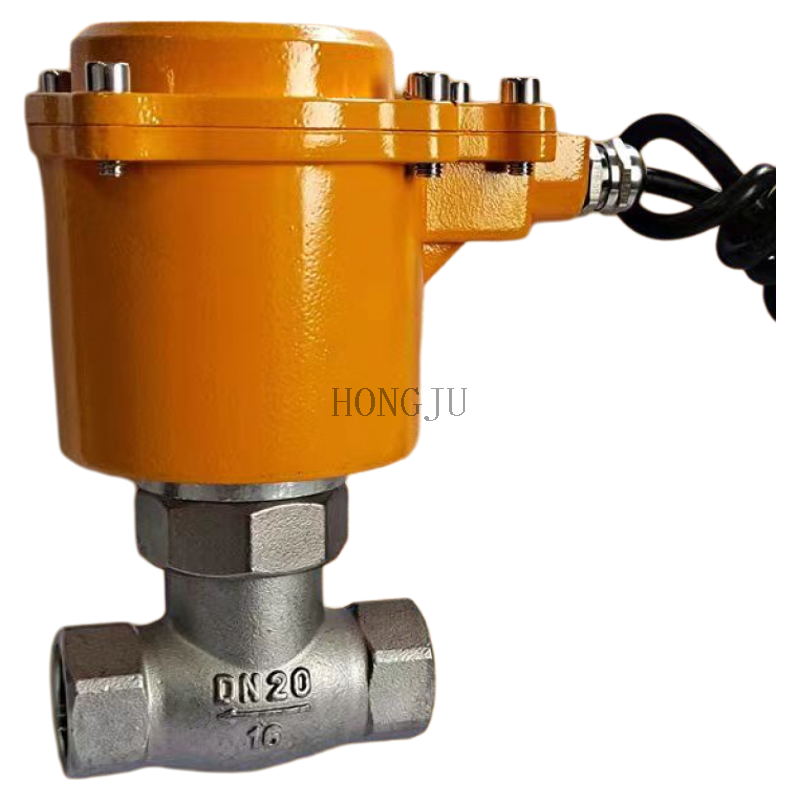

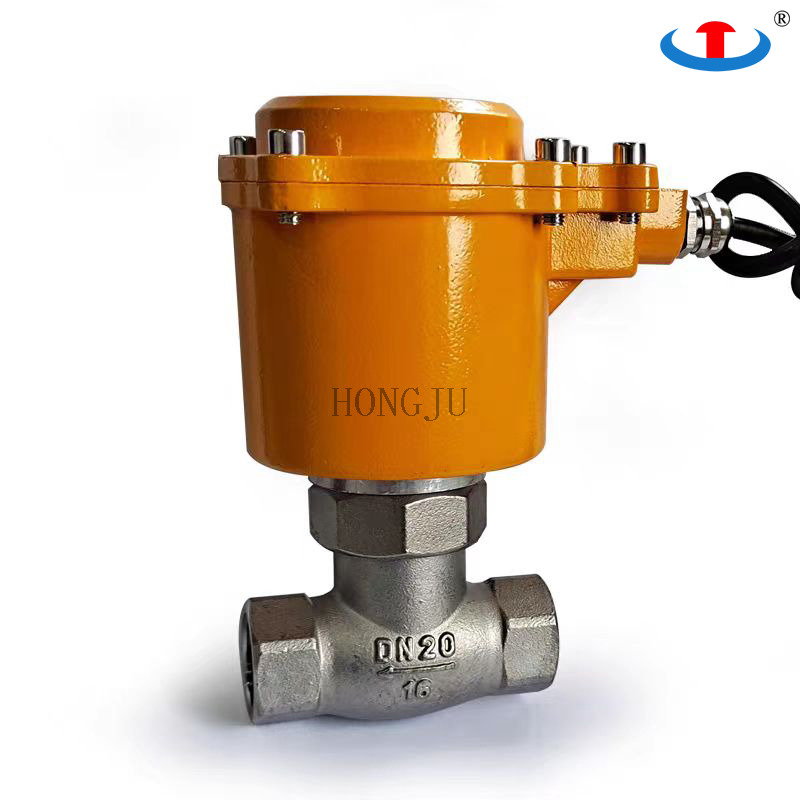

2L Steam Explosion-proof Solenoid Valve

The 2L series piston-type steam solenoid valve is engineered for high-temperature and high-pressure steam applications. Utilizing a durable piston structure, it ensures stable operation, excellent sealing, and extended service life, even under demanding conditions. The valve body is made from stainless steel, and is equipped with heat-resistant sealing materials to withstand steam temperatures up to 180 °C or higher. Ideal for industrial boilers, heating systems, and process steam control, the 2L series delivers reliable performance and easy maintenance.
Availability:
Quantity:
  • 2L

  • HONGJU

The 2L series piston-type steam solenoid valve is engineered for high-temperature and high-pressure steam applications. Utilizing a durable piston structure, it ensures stable operation, excellent sealing, and extended service life, even under demanding conditions. The valve body is made from stainless steel, and is equipped with heat-resistant sealing materials to withstand steam temperatures up to 180 °C or higher. Ideal for industrial boilers, heating systems, and process steam control, the 2L series delivers reliable performance and easy maintenance.


Nominal Diameter

Inch Diameter

Material

Length

(mm)

Height

(mm)

Pressure Resistance

Weight

(KG)

DN15

G1/2”

304

80

150

0.05-1.6MPa

1.55

DN20

G3/4”

304

85

150

0.05-1.6MPa

1.6

DN25

G1”

304

90

160

0.05-1.6MPa

1.75

DN32

G1-1/4”

304

100

170

0.05-1.6MPa

2.15

DN40

G1-1/2”

304

105

175

0.05-1.6MPa

2.3

DN50

G2”

304

120

190

0.05-1.6MPa

3.2


Connection Form

Threaded

Application

Industrial Usage, Water Industrial Usage, Household Usage

Structure

Piston type

Protection level

IP55

Function

Normally Closed

Applicable media

Steam,thermal oil,etc

Origin

China

Sealing Material

PTFE

Specification

DN15-DN50

Warranty

Valve body – 1 year;

Accessories – 3 months

(coil excluded)

Material

Stainless steel
