Home / Products / Piston Series Steam Solenoid Valve / ZCZP Steam Solenoid Valve / ZCZP Cast Steel Explosion Proof Flanged Solenoid Valve

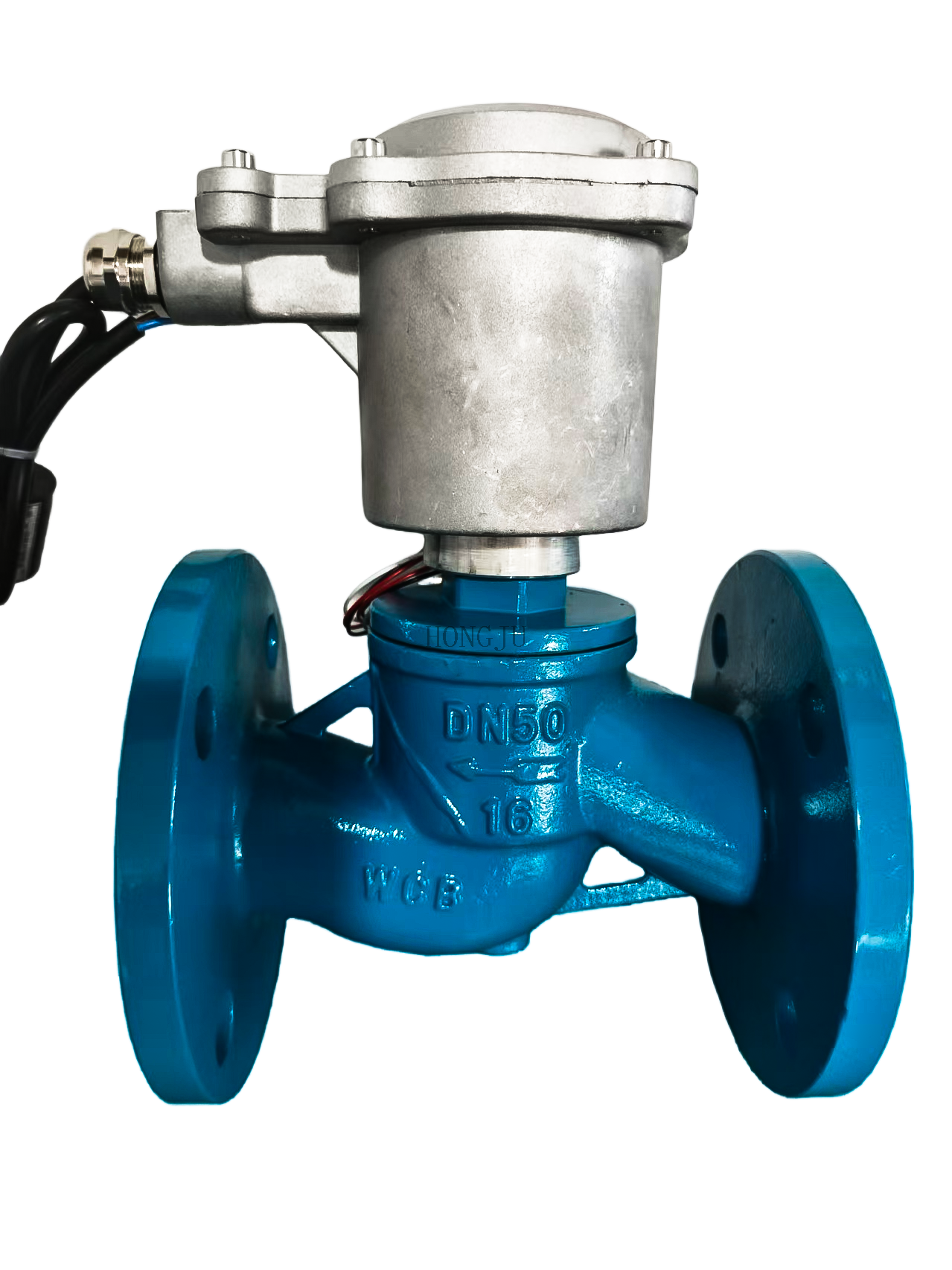

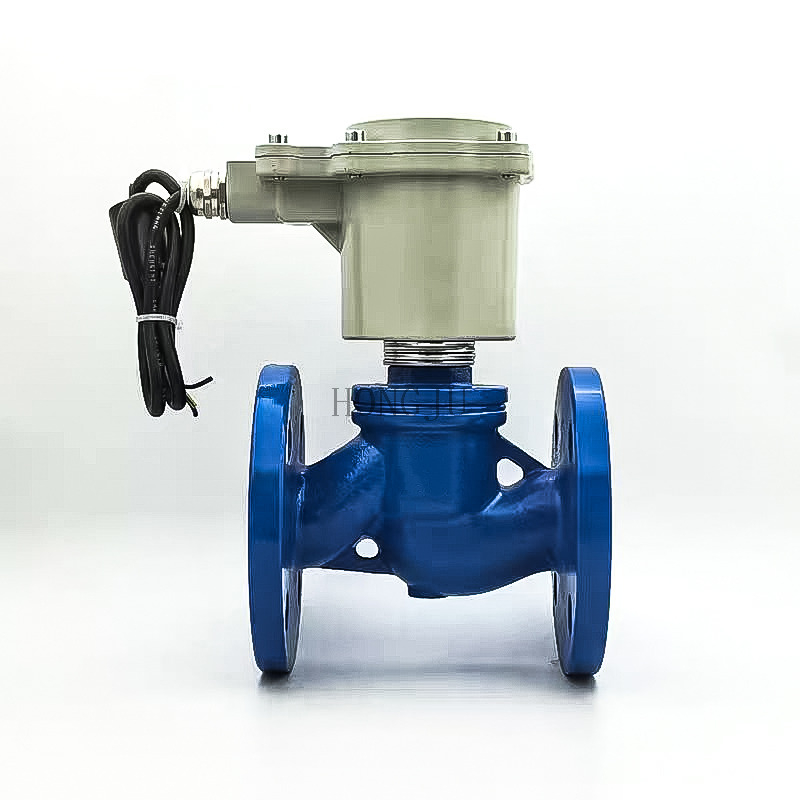

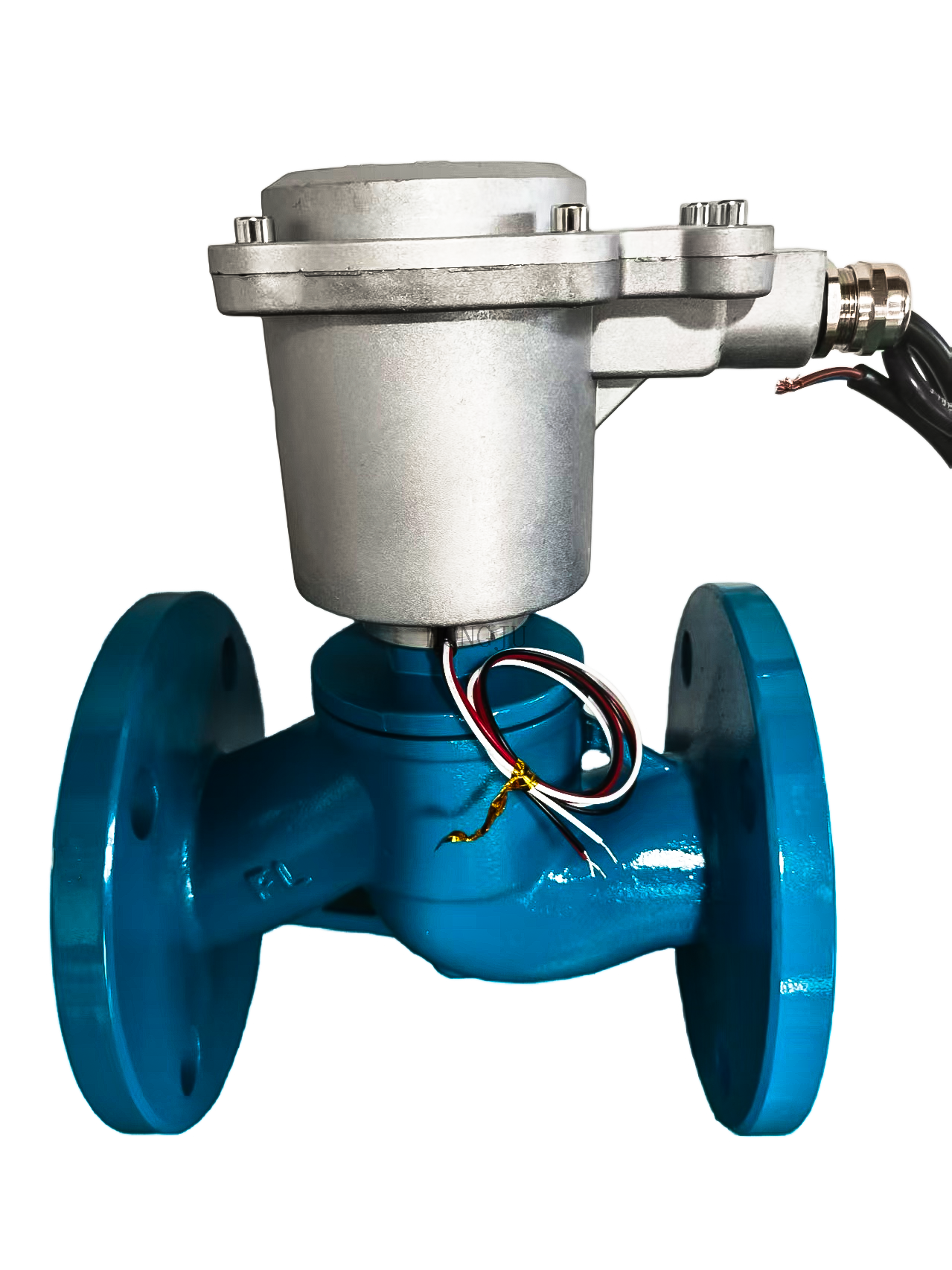

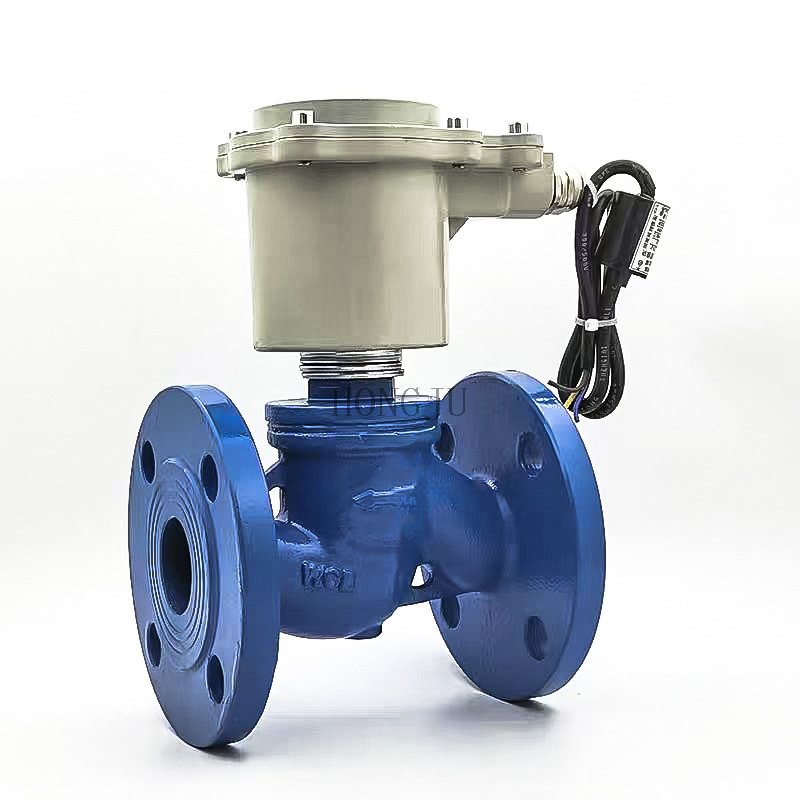

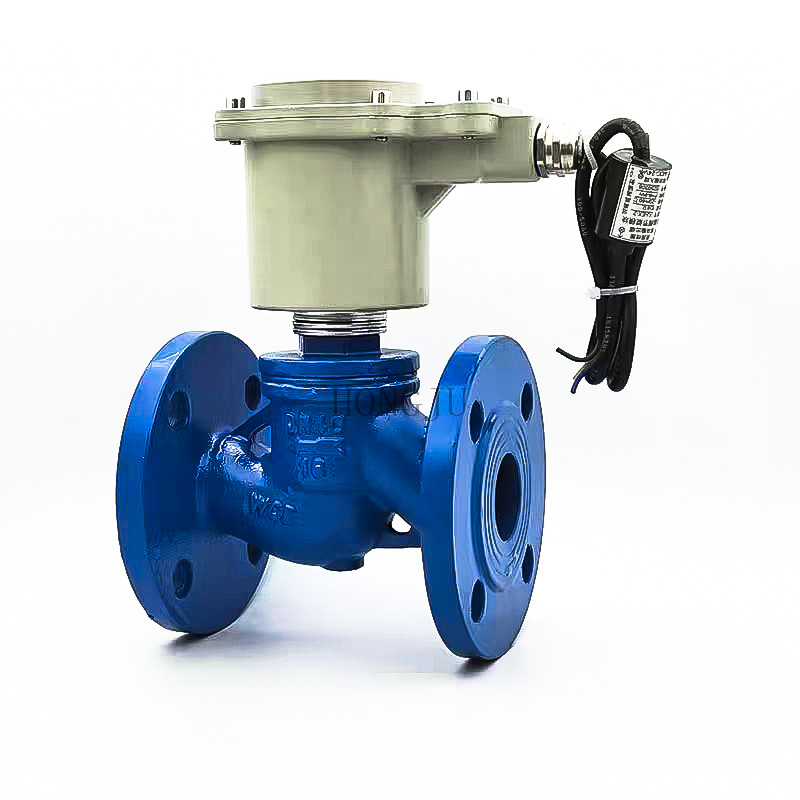

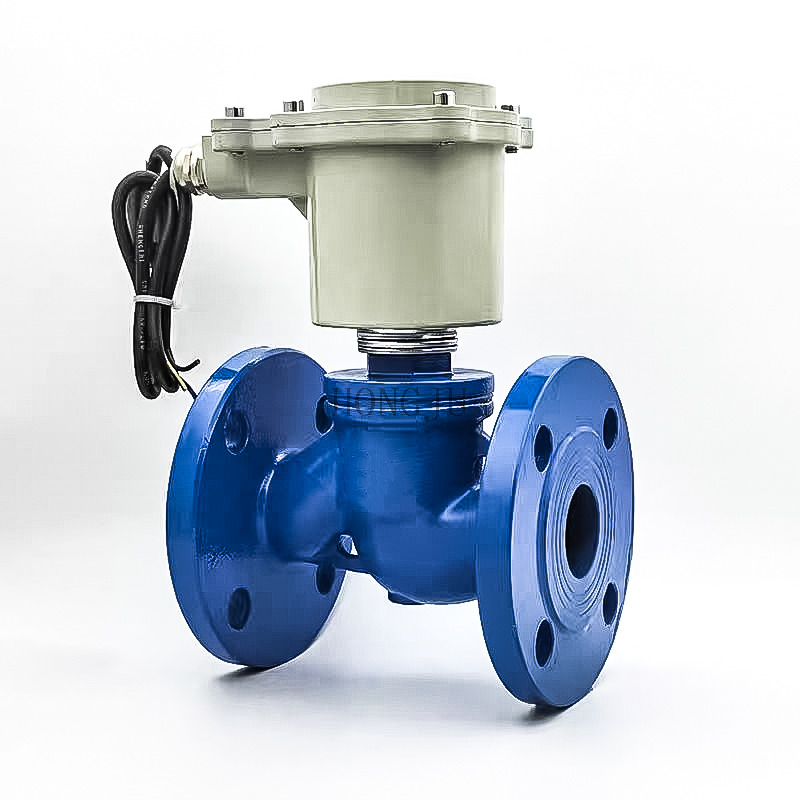

ZCZP Cast Steel Explosion Proof Flanged High Temperature Steam Solenoid Valve Water Solenoid Control Valve

ZCZP Cast Steel Explosion Proof Flanged High Temperature Steam Solenoid Valve Water Solenoid Control Valve

ZCZP Cast Steel Explosion Proof Flanged High Temperature Steam Solenoid Valve Water Solenoid Control Valve

ZCZP Cast Steel Explosion Proof Flanged High Temperature Steam Solenoid Valve Water Solenoid Control Valve

ZCZP Cast Steel Explosion Proof Flanged High Temperature Steam Solenoid Valve Water Solenoid Control Valve

ZCZP Cast Steel Explosion Proof Flanged High Temperature Steam Solenoid Valve Water Solenoid Control Valve

ZCZP Cast Steel Explosion Proof Flanged High Temperature Steam Solenoid Valve Water Solenoid Control Valve

Share to:

ZCZP Cast Steel Explosion Proof Flanged Solenoid Valve

ZCZP Piston Series Explosion-Proof Solenoid Valve, made of durable cast steel, ensures safe and stable control of gas, water, and oil. Factory direct, reliable after-sales support.

Size:	DN25-DN300
Material:	Cast steel
Availability:

Quantity:



Inquire Add to Basket

Model:
ZCZP
Brand:
HONGJU

Nominal Diameter	Inch Diameter	Material	Length (mm)	Height (mm)	Pressure Resistance	Weight (KG)
DN25	G1”	WCB cast steel	125	200	0-1.6MPa	3.2
DN32	G1-1/4”	WCB cast steel	150	250	0-1.6MPa	5.3
DN40	G1-1/2”	WCB cast steel	160	248	0-1.6MPa	6
DN50	G2”	WCB cast steel	195	260	0-1.6MPa	7.7
DN65	G2-1/2”	WCB cast steel	240/290	288	0.05-1.6MPa	14
DN80	G3”	WCB cast steel	270/310	305	0.05-1.6MPa	16.5
DN100	G4:	WCB cast steel	320/350	330	0.05-1.6MPa	22.2
DN125	G5”	WCB cast steel	350	390	0.05-1.6MPa	33.3
DN150	G6”	WCB cast steel	420	500	0.05-1.6MPa	50.6
DN200	G8”	WCB cast steel	520	570	0.05-1.6MPa	81.8
DN250	G10”	WCB cast steel	650		0.05-1.6MPa
DN300	G12”	WCB cast steel	750		0.05-1.6MPa
