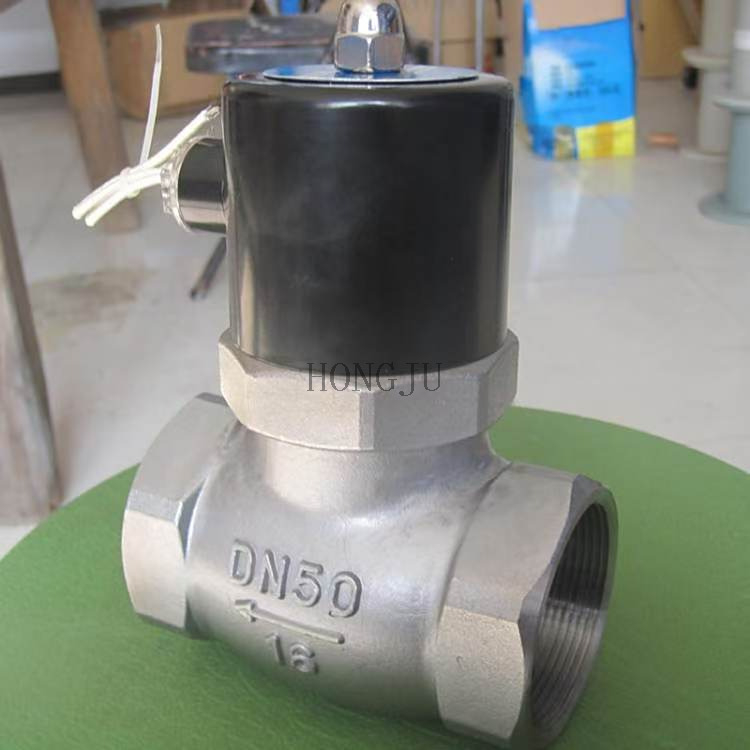

ZQDF Stainless Steel High Temperature Steam Solenoid Valve

This stainless steel piston-type solenoid valve is designed for high-temperature steam applications. Featuring a threaded connection, it provides reliable performance, precise control, and durability, making it ideal for industrial automation and steam system operations.

Size:	DN15-DN50
Material:	Stainless steel
Availability:

Quantity:



Inquire Add to Basket

Model:
ZQDF
Brand:
HONGJU

Nominal Diameter	Inch Diameter	Material	Length (mm)	Height (mm)	Pressure Resistance	Weight (KG)
DN15	G1/2”	304	115	188	0-1.6MPa	2.3
DN20	G3/4”	304	115	192	0-1.6MPa	2.4
DN25	G1”	304	125	198	0-1.6MPa	3
DN32	G1-1/4”	304	150	238	0-1.6MPa	4.9
DN40	G1-1/2”	304	160	242	0-1.6MPa	5.5
DN50	G2”	304	195	255	0-1.6MPa	6.8
DN65	G2-1/2”	304	240/290	285	0.05-1.6MPa	13.1
DN80	G3”	304	270/310	305	0.05-1.6MPa	21.5
DN100	G4”	304	320/350	330	0.05-1.6MPa	24.5
DN125	G5”	304	350	390	0.05-1.6MPa	33.3
DN150	G6”	304	420	500	0.05-1.6MPa	50.6
DN200	G8”	304	520	570	0.05-1.6MPa	81.8
DN250	G10”	304	650		0.05-1.6MPa
DN300	G12”	304	750		0.05-1.6MPa

Stainless steel solenoid valve Steam Solenoid Valve High Temperature Control Valve Piston Type Valve Threaded Connection Valve Industrial Steam Valve Electric Control Valve Heat Resistant Valve Automation Solenoid Valve Durable Steam Valve

Related Products

2L Steam Flange Solenoid Valve

2L Steam Solenoid Valve

ZBSF flange steam solenoid valve

ZCZP Steam Solenoid Valve

Stainless Steel Flanged High Temperature Steam Solenoid Valve

Cast Steel Flanged High Temperature Solenoid Valve

2W Series Diaphragm Brass Water Solenoid Valve Two Way Two Position Outdoor Waterproof IP65 Control Valve

2/2 Way Position Diaphragm Solenoid Valve Direct Acting Brass Water Control Valve

Stainless Steel Flanged Solenoid Valve

Food Grade Polished Solenoid Valve Quick-Fit Clamp Normally Closed Waterproof Control Valve

Mini Brass Electric Ball Valve Two-Wire Control Outdoor Waterproof

Brass Electric Motorized Two Way Ball Valve Normally Open &Closed

2L Steam Flange&Threaded Solenoid Valve

Stainless Steel Mini Electric Ball Valve Brass Manual Control Valve for Air and Water

3-Wire 2-Control Electric Ball Valve

Manual Automatic Integrated Electric Ball Valve

Connection Form	Threaded connection
Application	Industrial Usage, Water Industrial Usage, Household Usage
Structure	Piston type
Protection level	IP55
Function	Normally Closed or Opened
Applicable media	Steam, thermall oil, etc.
Origin	China
Sealing Material	PTFE
Specification	DN15 - DN50
Warranty	Valve body – 1 year; Accessories – 3 months (coil excluded)
Material	Stainless steel
