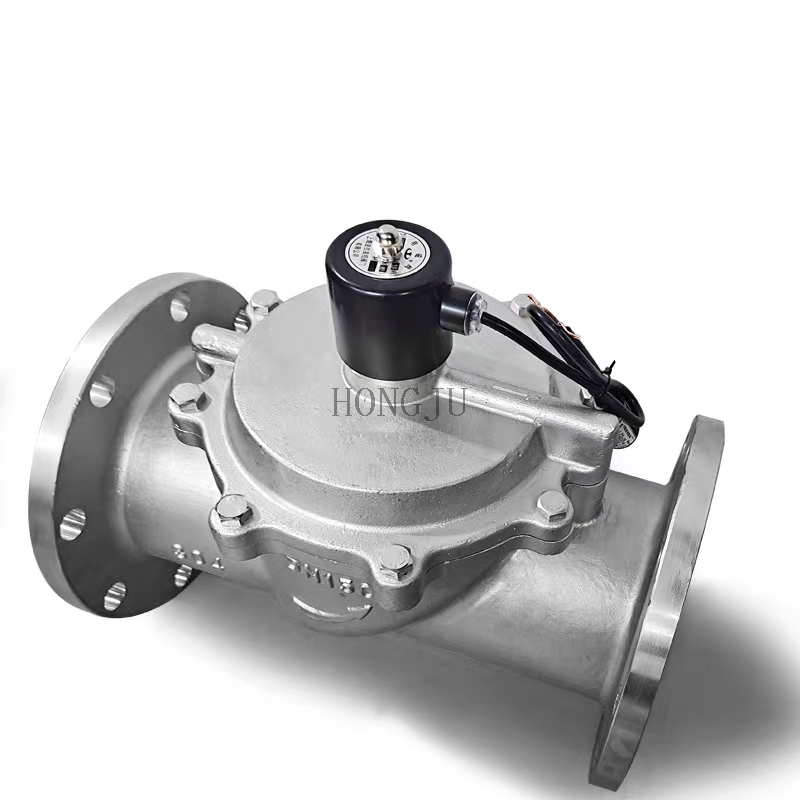

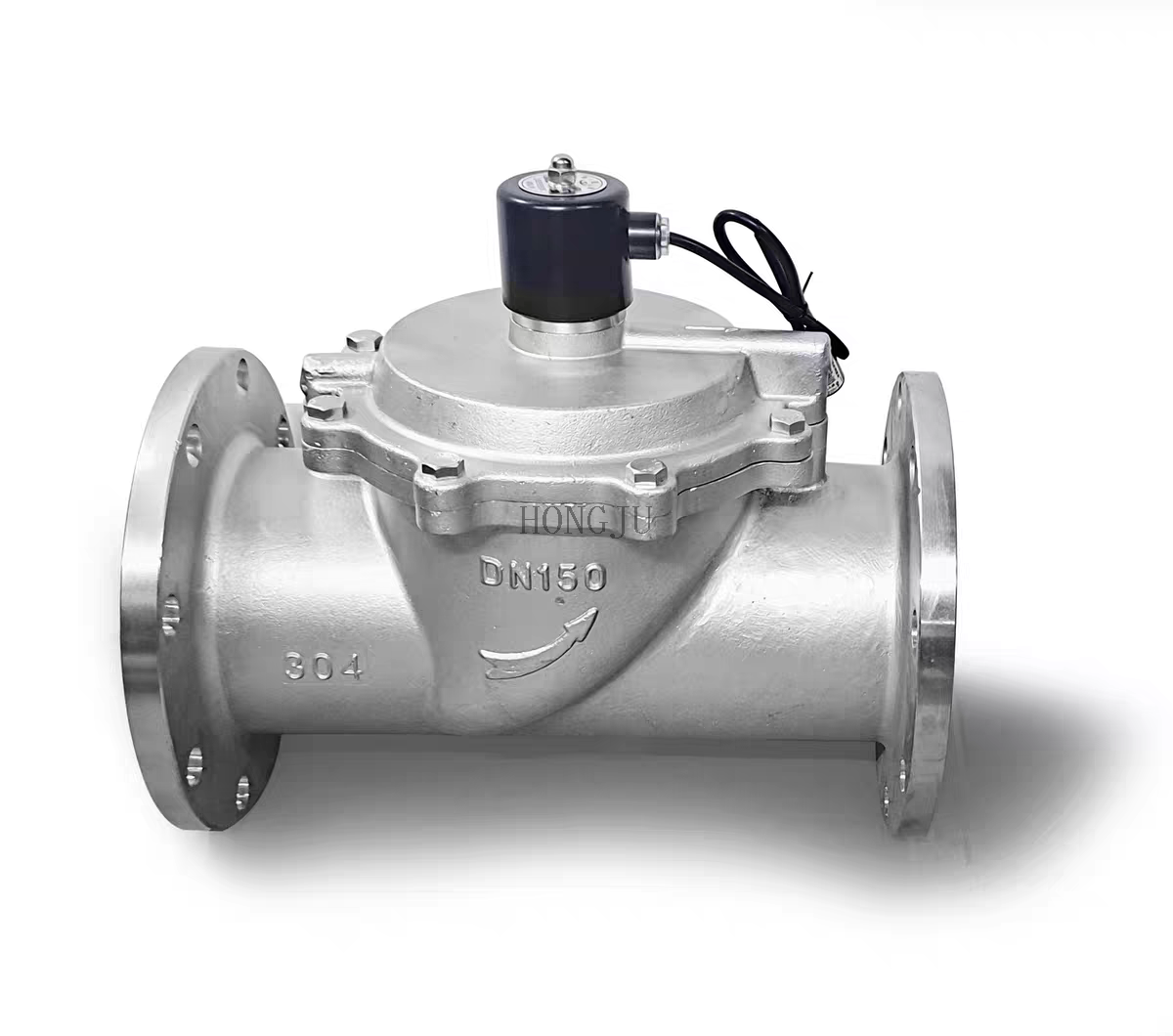

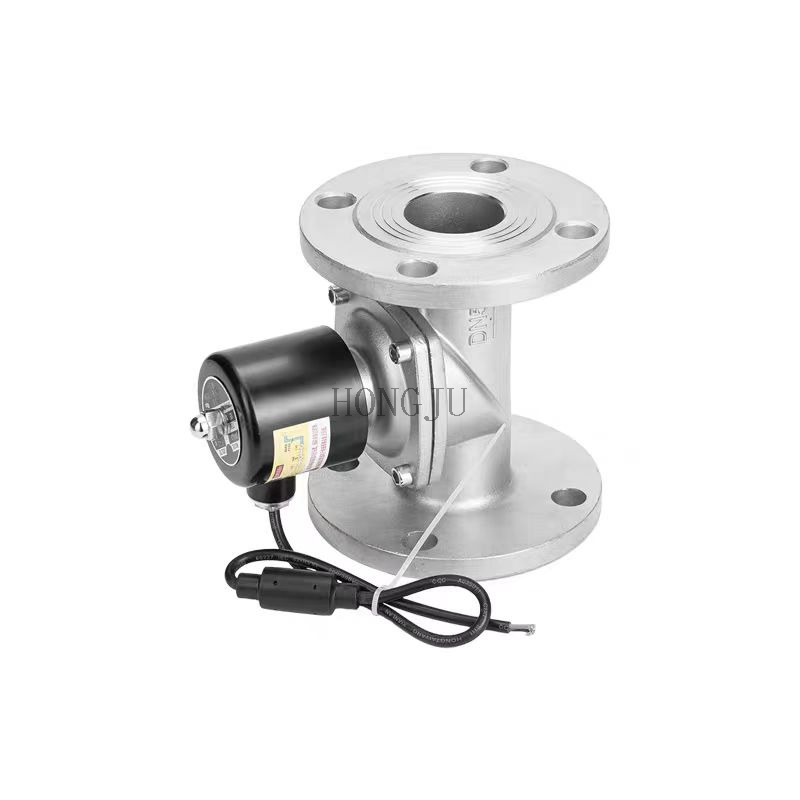

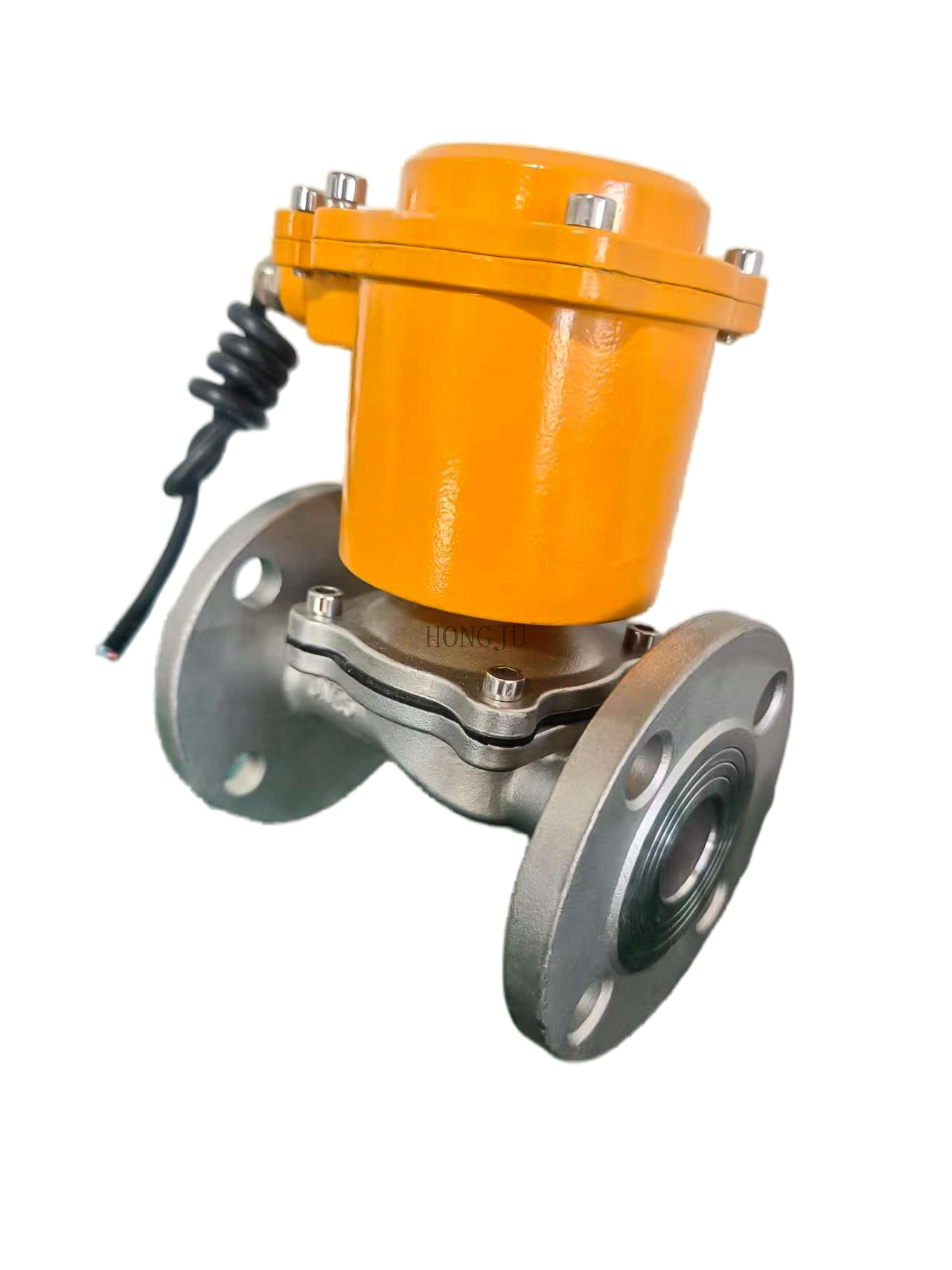

This 2/2 way stainless steel flange water solenoid valve 24V is designed for reliable control of liquid flow. Made of durable stainless steel, it offers excellent corrosion resistance, tight sealing, and stable performance for industrial and water system applications.
| Size: | |
|---|---|
| Material: | |
| Quantity: | |
2W
HONGJU
Nominal Diameter | Inch Diameter | Material | Length (mm) | Height (mm) | Pressure Resistance | Weight (KG) |
DN15 | G1/2” | 304/316L | 108 | 143 | 0-1MPa | 1.6 |
DN20 | G3/4” | 304/316L | 108 | 148 | 0-1MPa | 1.75 |
DN25 | G1” | 304 | 137 | 155 | 0-1MPa | 2.25 |
DN25 | G1” | 304/316L | 137 | 155 | 0-1MPa | 2.65 |
DN32 | G1-1/4” | 304 | 148 | 171 | 0-1MPa | 3 |
DN32 | G1-1/4” | 304/316L | 148 | 200 | 0-1MPa | 3.69 |
DN40 | G1-1/2” | 304 | 155 | 204 | 0-1MPa | 6.1 |
DN40 | G1-1/2” | 304/316L | 155 | 207 | 0-1MPa | 4.82 |
DN50 | G2” | 304/316L | 170 | 223 | 0-1MPa | 6.2 |
DN50 | G2” | 304 | 185 | 228 | 0-1MPa | 6.5 |
DN65 | G2-1/2” | 304/316L | 225 | 247 | 0-1MPa | 9 |
DN65 | G2-1/2” | 304/316L | 0-1MPa | |||
DN80 | G3” | 304/316L | 260 | 259 | 0.05-1MPa | 12.3 |
DN80 | G3” | 304/316L | 0.05-1MPa | |||
DN100 | G4” | 304/316L | 320 | 288 | 0.05-1MPa | 18 |
DN100 | G4” | 304/316L | 0.05-1MPa | |||
DN125 | G5” | 304 | 350 | 336 | 0.05-1MPa | 27 |
DN150 | G6” | 304 | 420 | 400 | 0.05-1MPa | 40 |
DN200 | G8” | 304 | 520 | 480 | 0.05-1MPa | 61 |
