Home / Products / Diaphragm Series Solenoid Valve / ZCS / Normally Closed Flanged 2/2 Way Cast Steel Control Valve

Normally Closed Flanged 2/2 Way Cast Steel Control Valve

Share to:

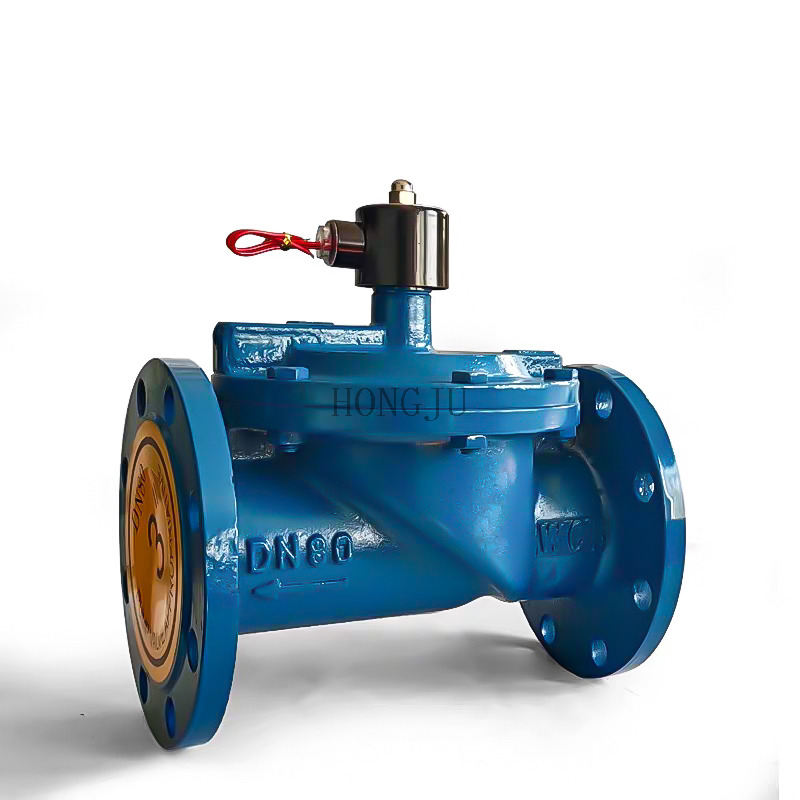

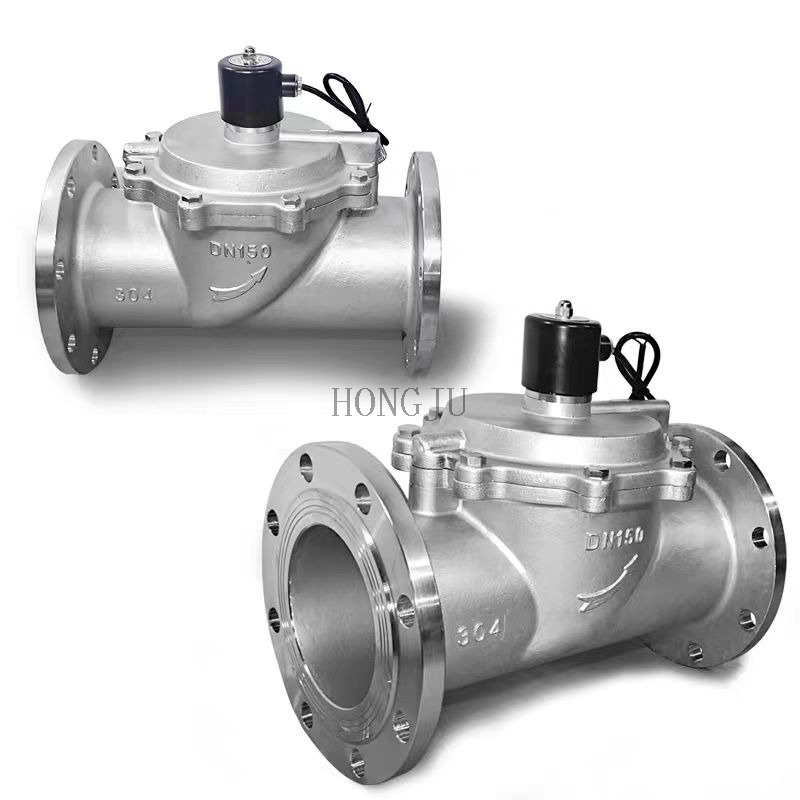

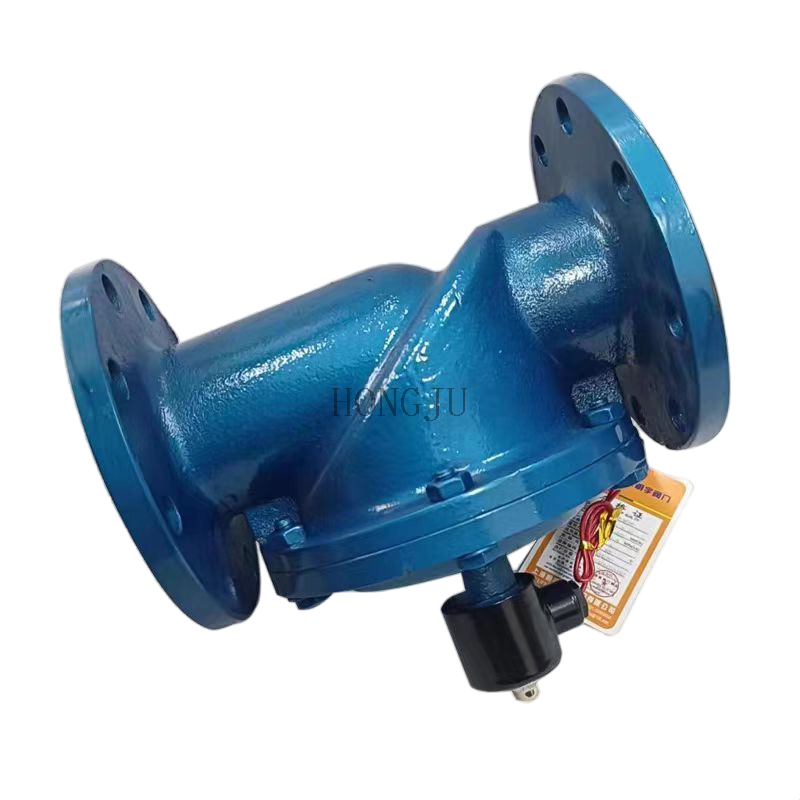

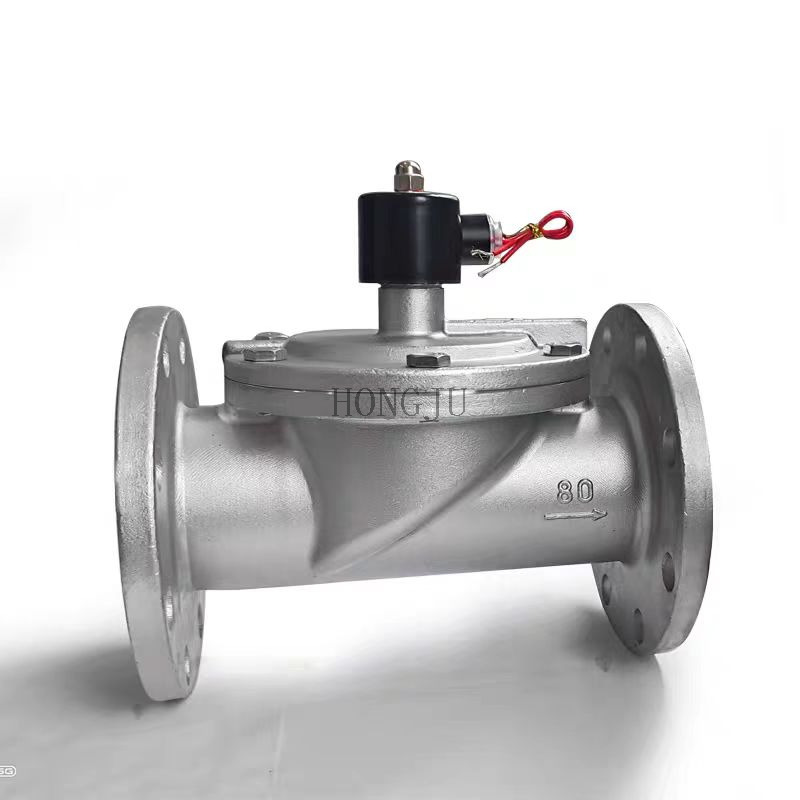

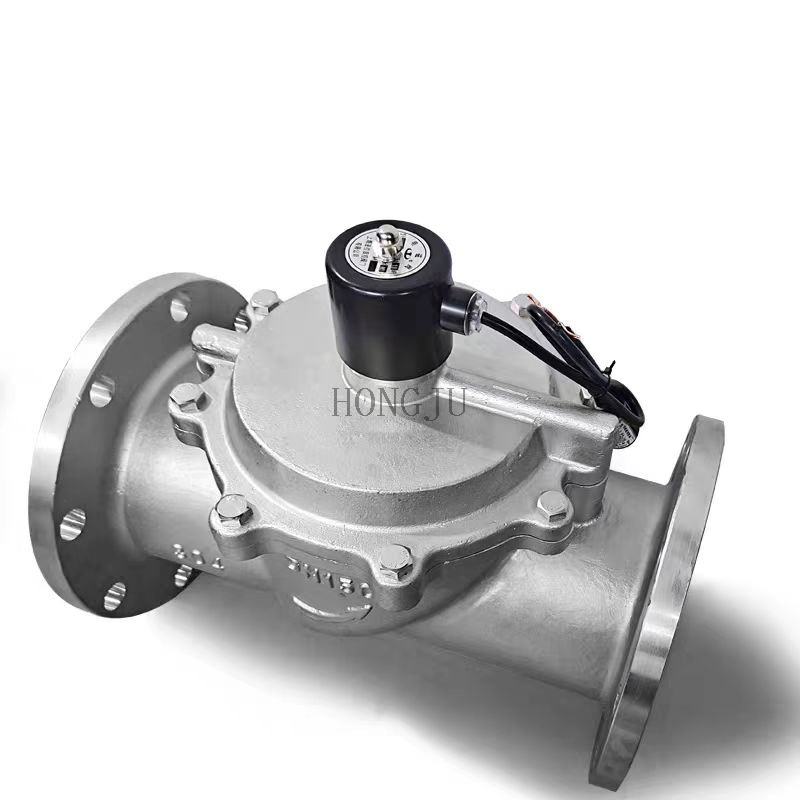

Normally Closed Flanged 2/2 Way Cast Steel Control Valve

This 304 stainless steel solenoid valve features a normally closed design with flanged 2/2 way connections. Made of durable cast steel, it ensures reliable control of water, air, or gas systems. Available in 220V and 24V for versatile applications.

Material:	Stainless Steel Cast steel
Size:	DN15-DN200
Availability:

Quantity:



Inquire Add to Basket

Model:
2W
Brand:
HONGJU

Nominal Diameter	Inch Diameter	Material	Length (mm)	Height (mm)	Pressure Resistance	Weight (KG)
DN15	G1/2”	304/316L	108	143	0-1MPa	1.6
DN20	G3/4”	304/316L	108	148	0-1MPa	1.75
DN25	G1”	304	137	155	0-1MPa	2.25
DN25	G1”	304/316L	137	155	0-1MPa	2.65
DN32	G1-1/4”	304	148	171	0-1MPa	3
DN32	G1-1/4”	304/316L	148	200	0-1MPa	3.69
DN40	G1-1/2”	304	155	204	0-1MPa	6.1
DN40	G1-1/2”	304/316L	155	207	0-1MPa	4.82
DN50	G2”	304/316L	170	223	0-1MPa	6.2
DN50	G2”	304	185	228	0-1MPa	6.5
DN65	G2-1/2”	304/316L	225	247	0-1MPa	9
DN65	G2-1/2”	304/316L			0-1MPa
DN80	G3”	304/316L	260	259	0.05-1MPa	12.3
DN80	G3”	304/316L			0.05-1MPa
DN100	G4”	304/316L	320	288	0.05-1MPa	18
DN100	G4”	304/316L			0.05-1MPa
DN125	G5”	304	350	336	0.05-1MPa	27
DN150	G6”	304	420	400	0.05-1MPa	40
DN200	G8”	304	520	480	0.05-1MPa	61

304 Stainless Steel Valve Normally Closed Solenoid Valve Flanged 2/2 Way Valve Cast Steel Control Valve Electric Solenoid Control Valve 220V 24V Solenoid Valve Industrial Water Control Valve High Pressure Stainless Valve Direct Acting Solenoid Valve Two Way Flanged Valve

Related Products

2W Sanitary Quick-Install Polished Solenoid Valve

2W Threaded Solenoid Valve

4V 210-08 Pneumatic Solenoid Valve

DMF-Pulse Solenoid Valve

Food Grade Polished Solenoid Valve Quick-Fit Clamp Normally Closed Waterproof Control Valve

Mini Brass Electric Ball Valve Two-Wire Control Outdoor Waterproof

Brass Electric Motorized Two Way Ball Valve Normally Open &Closed

2L Steam Flange&Threaded Solenoid Valve

Stainless Steel Mini Electric Ball Valve Brass Manual Control Valve for Air and Water

3-Wire 2-Control Electric Ball Valve

Manual Automatic Integrated Electric Ball Valve

Mini Brass Electric Ball Valve Two-Wire Control Outdoor Waterproof

Three-Wire Two-Control Electric Ball Valve

Quick Install Clamp Solenoid Valve Food Grade 304 Stainless Steel

Quick Install Clamp Solenoid Valve Normally Closed Food Grade 304 Stainless Steel

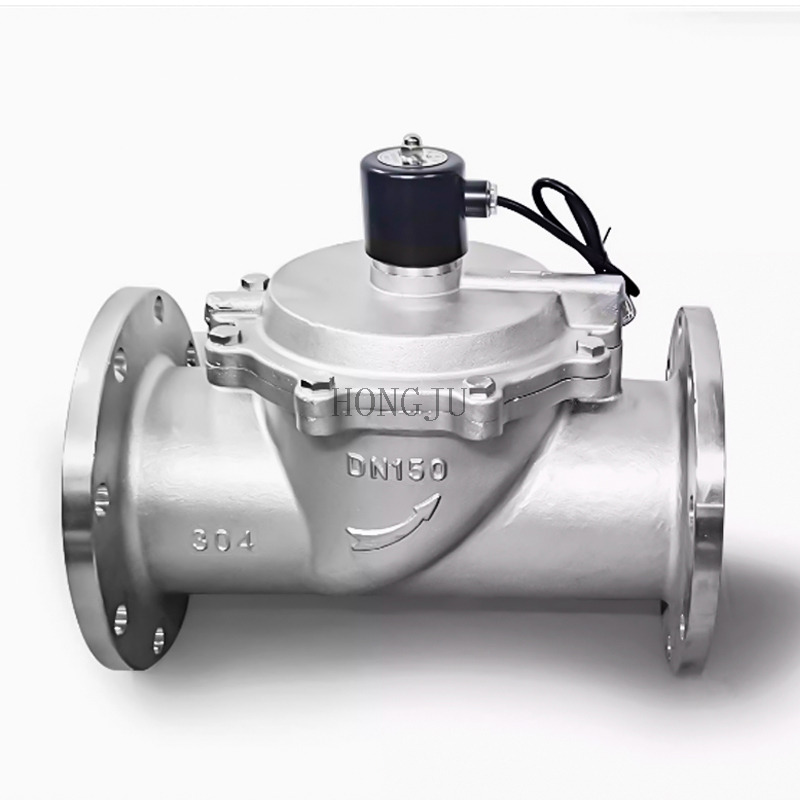

Stainless Steel Flanged Solenoid Valve

2W Series Diaphragm Brass Water Solenoid Valve Two Way Two Position Outdoor Waterproof IP65 Control Valve

304 Stainless Steel Water Solenoid Valve 2/2 Way Brass Control Valve

ZQDF Stainless Steel High Temperature Steam Solenoid Valve

Stainless Steel Flanged High Temperature Steam Solenoid Valve

Cast Steel Flanged High Temperature Solenoid Valve

2/2 Way Position Diaphragm Solenoid Valve Direct Acting Brass Water Control Valve

Connection Form	Flange connection
Application	Industrial Usage, Water Industrial Usage, Household Usage
Structure	Diaphragm type
Protection level	IP55
Function	Normally Closed or Opened
Applicable media	Air,gas,water,etc
Origin	China
Sealing Material	NBR, FKM, Silicone
Specification	DN15 - DN200
Warranty	Valve body – 1 year; Accessories – 3 months (coil excluded)
Material	Stainless steel,Cast steel
