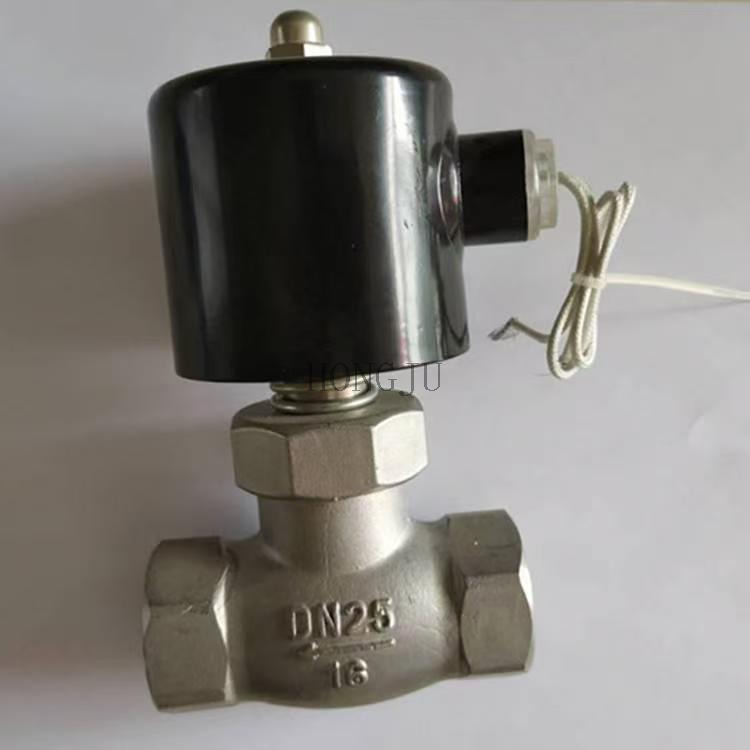

This 2-way stainless steel steam solenoid valve features a normally closed design and threaded connection, ideal for high-temperature and steam applications. It provides reliable sealing, corrosion resistance, and long service life for industrial automation and fluid control systems.
| Size: | |
|---|---|
| Material: | |
| Quantity: | |
2L
HONGJU
Nominal Diameter | Inch Diameter | Material | Length(mm) | Height(mm) | Pressure Resistance | Weight(KG) |
DN15 | G1/2” | 304 | 110 | 177 | 0.05-1.6MPa | 2.55 |
DN20 | G3/4” | 304 | 110 | 177 | 0.05-1.6MPa | 2.75 |
DN25 | G1” | 304 | 125 | 185 | 0.05-1.6MPa | 3.05 |
DN32 | G1-1/4” | 304 | 155 | 210 | 0.05-1.6MPa | 4.4 |
DN40 | G1-1/2” | 304 | 170 | 220 | 0.05-1.6MPa | 5.1 |
| DN50 | G2” | 304 | 195 | 245 | 0.05-1.6MPa | 6.8 |
DN65 | G2-1/2” | 304 | 225 | 285 | 0.05-1.6MPa | 9.8 |
