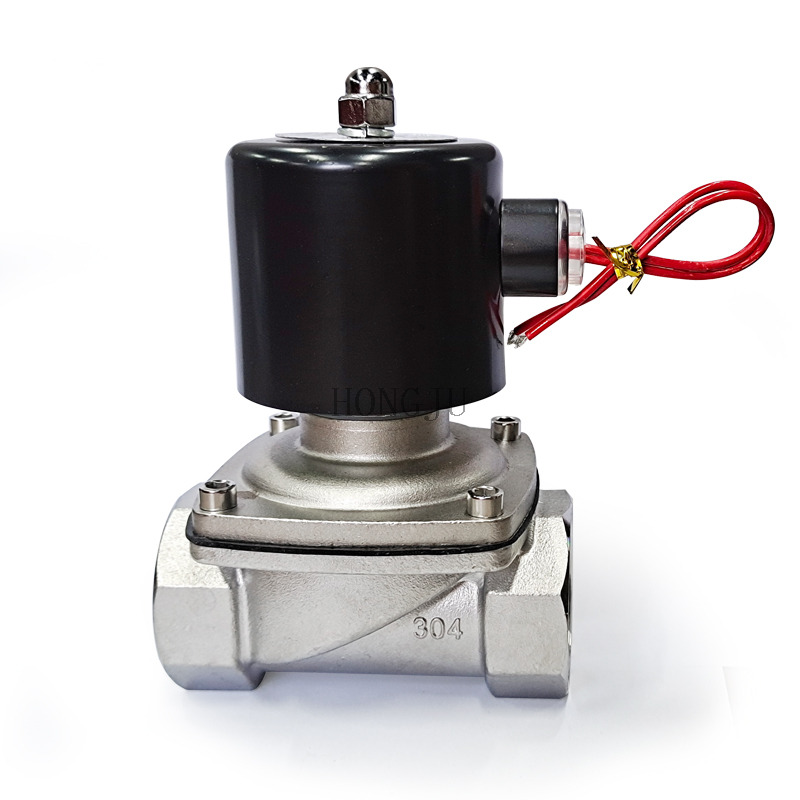

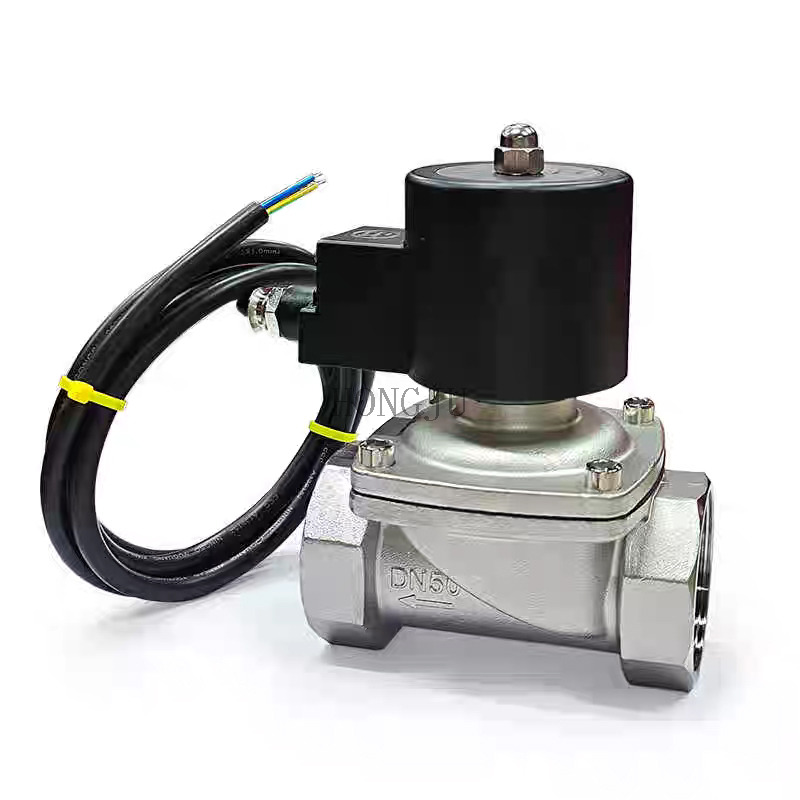

2/2 Way Solenoid Valve Explosion-Proof Water Valve 220V 24V

This 2/2-way explosion-proof solenoid valve is designed for water control, operating at 220V and 24V. Built for high safety standards, it effectively prevents hazardous situations in demanding environments, making it ideal for industrial applications that require reliable and secure fluid management.
Size:
DN15-DN100
Material:
Stainless steel
Availability:
Quantity:
Inquire Add to Basket

  • B2W

  • HONGJU

Nominal Diameter

Inch Diameter

Material

Length

(mm)

Height

(mm)

Pressure Resistance

Weight

(KG)

DN08

G1/4”

304

40

75

1.0mpa

0.45

DN10

G3/8”

304

43

84

1.0mpa

0.45

DN15

G1/2”

304

61

105

1.0mpa

0.65

DN15

G1/2”

304/316L

67

109

1.0mpa

0.8

DN20

G3/4”

304

67

111

1.0mpa

0.7

DN20

G3/4”

304/316L

73

116

1.0mpa

0.9

DN25

G1”

304

90

120

1.0mpa

1

DN25

G1”

304/316L

100

125

1.0mpa

1.2

DN32

G1-1/4”

304

95

130

1.0mpa

1.1

DN32

G1-1/4”

304/316L

110

160

1.0mpa

2.1

DN32

G1-1/4”

304

100

134

1.0mpa

1.35

DN40

G1-1/2”

304

106

164

1.0mpa

2.05

DN40

G1-1/2”

304/316L

120

170

1.0mpa

2.4

DN50

G2”

304/316L

127

175

1.0mpa

2.5

DN50

G2”

304

165

180

1.0mpa

3.32

DN65

G2-1/2”

304/316L

180

207

1.0mpa

4.35

DN80

G3”

304

185

215

1.0mpa

4.9

DN100

G4”

304

195

242

1.0mpa

6.25




Connection Form

Threaded

Application

Industrial Usage, Water Industrial Usage, Household Usage

Actuator

Solenoid

Protection level

IP55

Function

Normally Closed or Opened

Applicable media

Water,air,oil,etc

Origin

China

Sealing Material

NBR, FKM,Silicone

Specification

DN08 - DN100

Warranty

Valve body – 1 year;

Accessories – 3 months

(coil excluded)

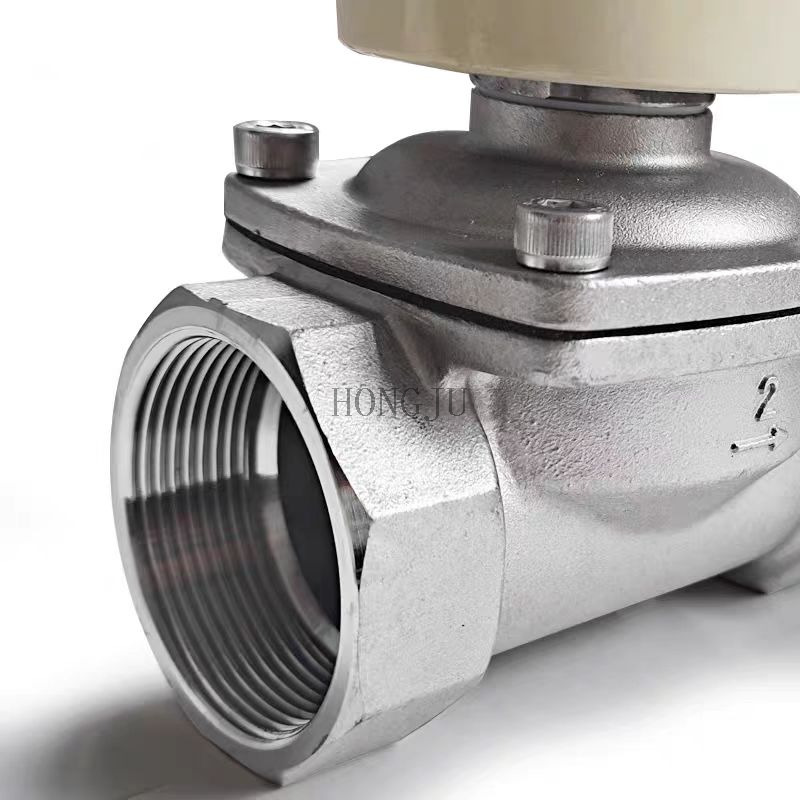

The 2W series threaded solenoid valve is designed for reliable control of water, air, oil, and other compatible fluids. Made from high-quality brass or stainless steel, it features a compact structure, quick response, and excellent sealing performance. With threaded connections for easy installation, this valve is widely used in industrial automation, irrigation systems, and fluid control applications.


Previous:
Next:
2/2 Way Solenoid Valve Explosion-Proof Valve Water Solenoid Valve 220V Solenoid Valve 24V Solenoid Valve industrial valve electrical water valve safety valve solenoid valve for water high-pressure valve

Related Products

2W Sanitary Quick-Install Polished Solenoid Valve
2W Sanitary Quick-Install Polished Solenoid Valve
2W Flanged Explosion-Proof Solenoid Valve
2W Flanged Explosion-Proof Solenoid Valve
Electric Ball Valve
Electric Ball Valve
2L Steam Solenoid Valve
2L Steam Solenoid Valve
ZBSF ZQDF Steam Solenoid Valve
ZBSF flange steam solenoid valve

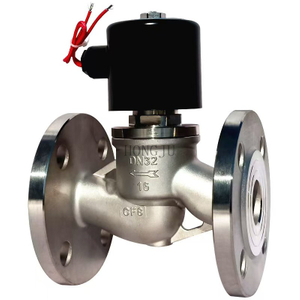

Solenoid Valve Stainless Steel Flange Connection Water Steam Compatible
Solenoid Valve Stainless Steel Flange Connection Water Steam Compatible

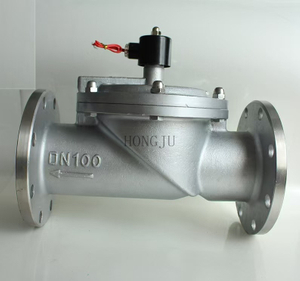

Solenoid Valve for Water Cast Steel & Stainless Steel Body 220V/24V
Solenoid Valve for Water Cast Steel & Stainless Steel Body 220V/24V

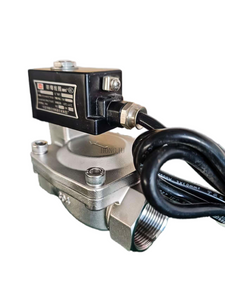

Encapsulated Explosion Proof Solenoid Valve Diaphragm Type Pilot Operated Normally Closed Solenoid Control Valve
2/2 Way High-Pressure Explosion-Proof Solenoid Valve for Water

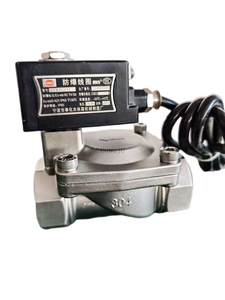

2/2 way 304 stainless steel diaphragm type water solenoid valve
2/2 way 304 stainless steel diaphragm type water solenoid valve
2W Water Air Valve 24V 220V Normally Closed Solenoid Valve
2W Water Air Valve 24V 220V Normally Closed Solenoid Valve

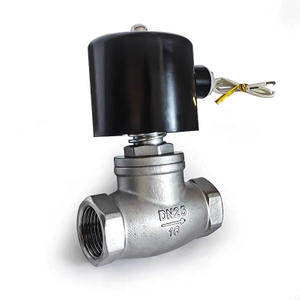

ZQDF Steam Threaded Solenoid Valve
Steam Solenoid Valve Stainless Steel 16 Bar 220V 24V

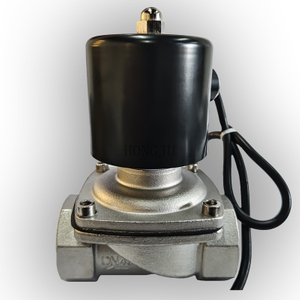

2/2 way Solenoid Valve Outdoor Waterproof Stainless Stee
2/2 way Solenoid Valve Outdoor Waterproof Stainless Stee
Quick-Fit Clamp Type Solenoid Valve Polished Food Grade
Quick-Fit Clamp Type Solenoid Valve Polished Food Grade

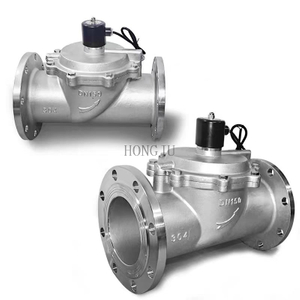

Normally Closed Flanged 2/2 Way Cast Steel Control Valve
Flange Type Normally Closed Solenoid Valve Zero Pressure Start 24V 220V

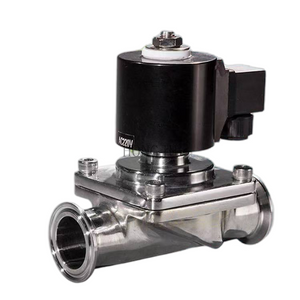

Food Grade Polished Solenoid Valve Quick-Fit Clamp Normally Closed Waterproof Control Valve
