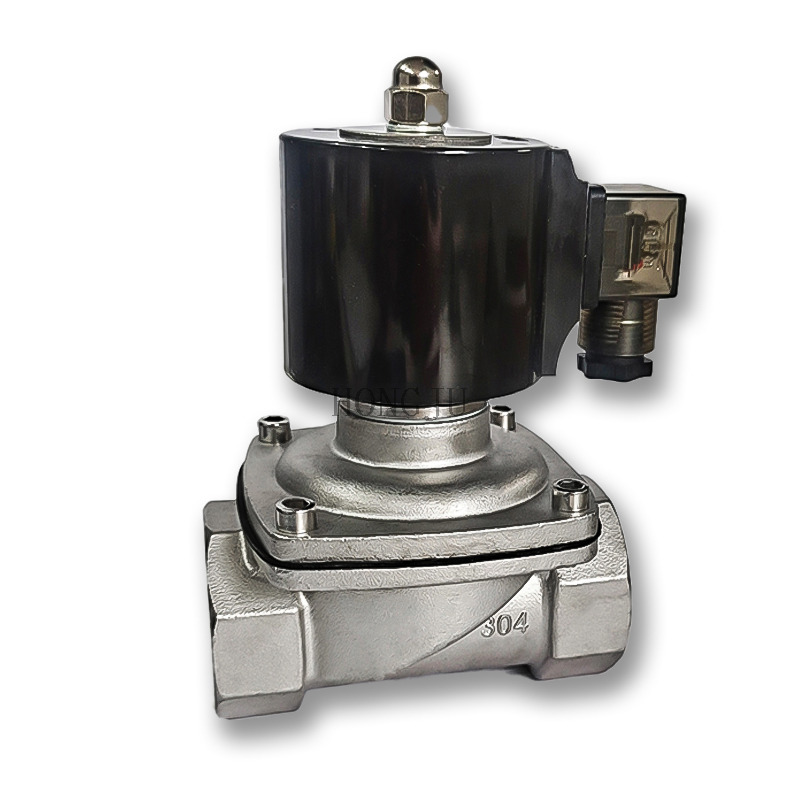

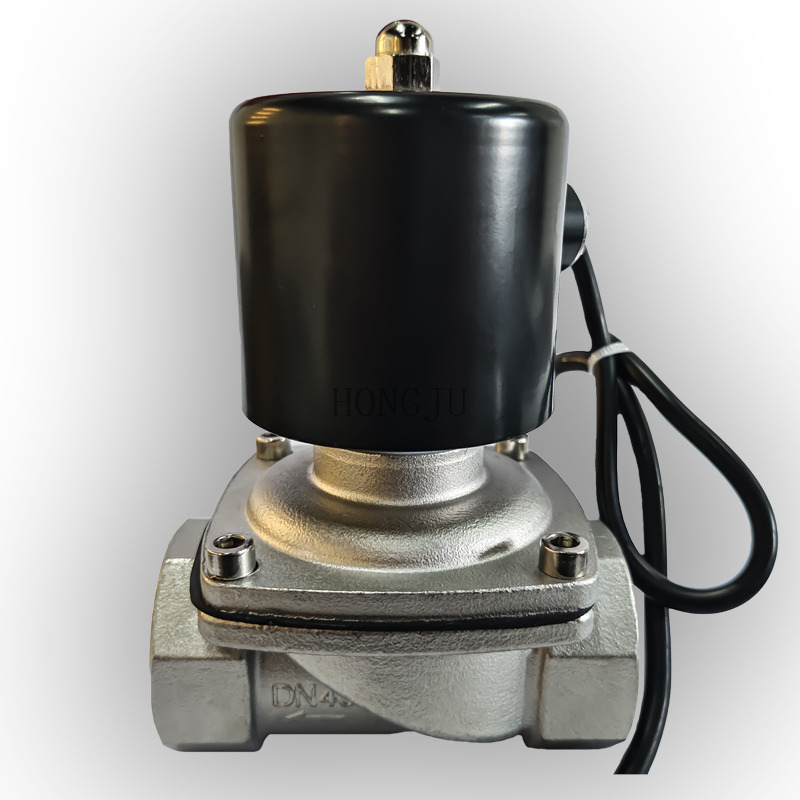

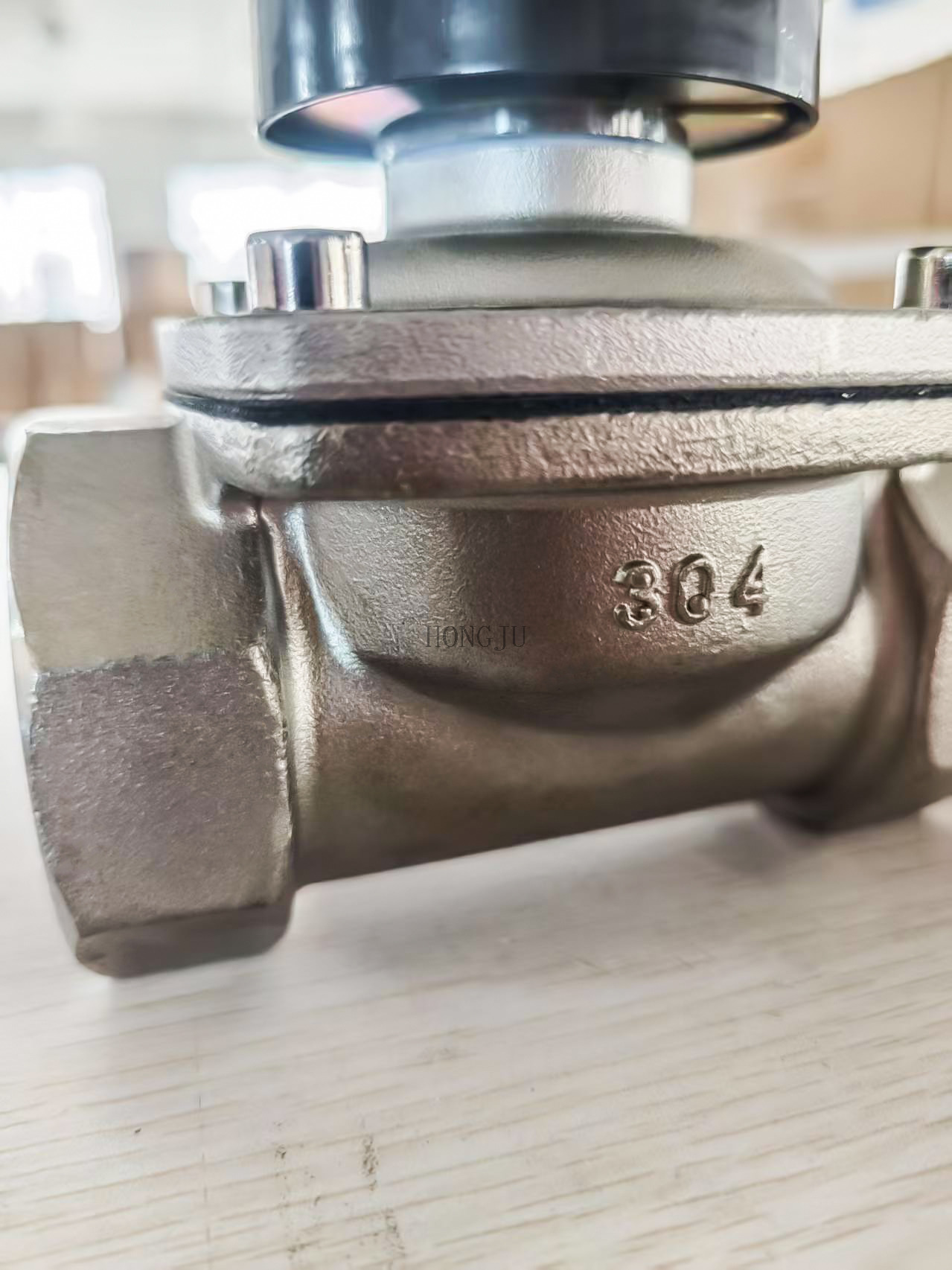

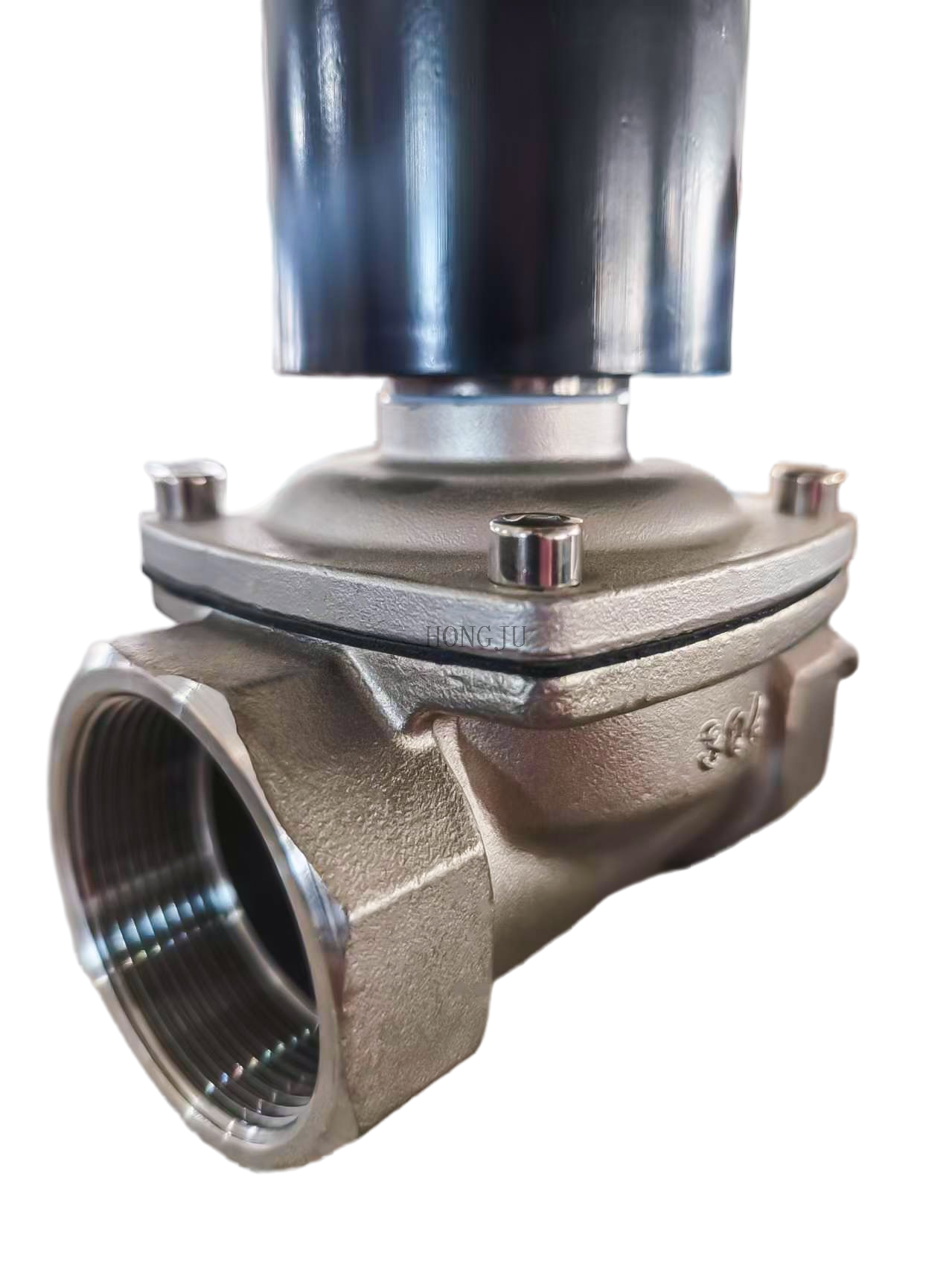

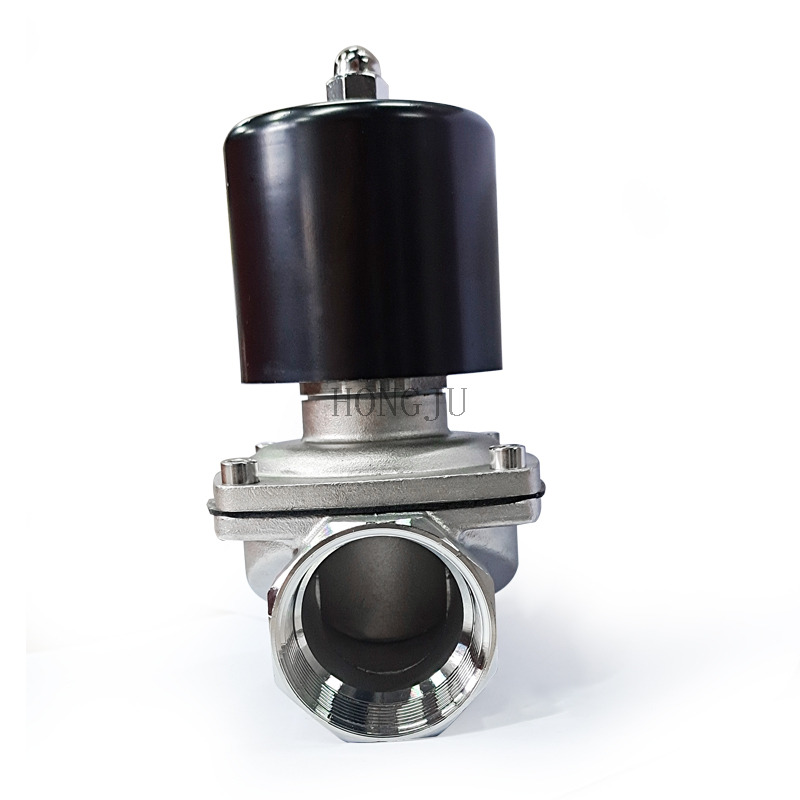

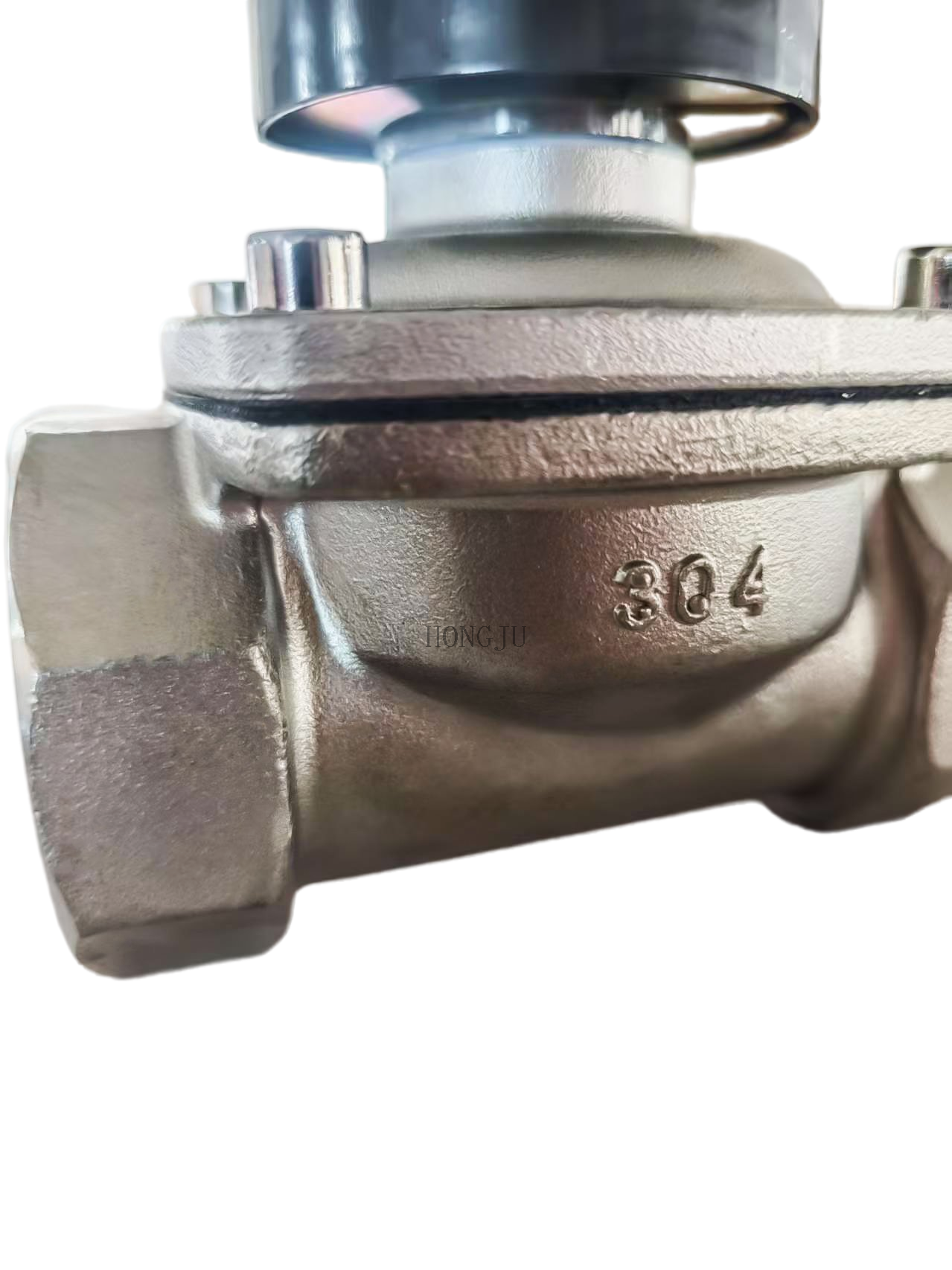

Durable outdoor waterproof stainless steel solenoid valve, 2-way 2-position design, normally closed type, suitable for water, air, and light oil control, available in 220V and 24V options.
| Size: | |
|---|---|
| Material: | |
| Quantity: | |
2W
HONGJU
Nominal Diameter | Inch Diameter | Material | Length (mm) | Height (mm) | Pressure Resistance | Weight (KG) |
DN15 | G1/2” | Brass | 64 | 97 | 1.0mpa | 0.65 |
DN20 | G3/4” | Brass | 65 | 102 | 1.0mpa | 0.7 |
DN25 | G1” | Brass | 92 | 114 | 1.0mpa | 1 |
DN32 | G1-1/4” | Brass | 98 | 117 | 1.0mpa | 1.1 |
DN40 | G1-1/2” | Brass | 109 | 153 | 1.0mpa | 2.05 |
DN50 | G2” | Brass | 130 | 165 | 1.0mpa | 2.5 |
