Home / Products / Diaphragm Series Solenoid Valve / Sanitary Quick-Install Polished Solenoid Valve / Sanitary Clamp Connection Solenoid Valve Normally Closed 24V 220V

Food Grade Polished Solenoid Valve Quick-Fit Clamp Normally Closed Waterproof Control Valve

Share to:

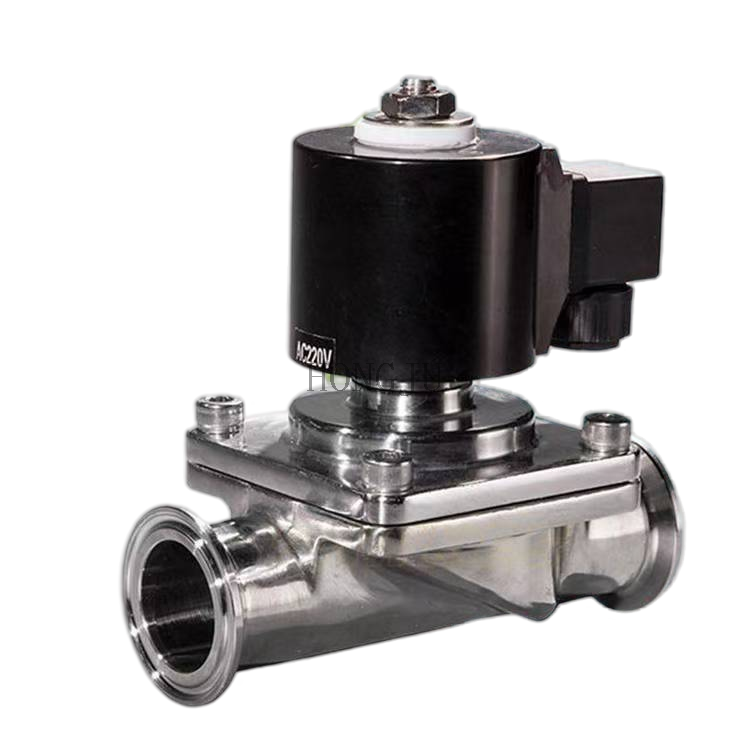

Sanitary Clamp Connection Solenoid Valve Normally Closed 24V 220V

This sanitary solenoid valve with clamp connection is designed for hygienic applications. It features a normally closed design and supports both 24V and 220V power options, ensuring reliable flow control for food, beverage, and pharmaceutical processing systems.

Size:	DN15-DN50
Material:	Stainless steel
Availability:

Quantity:



Inquire Add to Basket

Model:
2W
Brand:
HONGJU

Nominal Diameter	Inch Diameter	Chuck Outer Diameter	Material	Length (mm)	Height (mm)	Pressure Resistance	Weight (KG)
DN15	G1/2”	50.5	304/316L	100	125	0-1MPa	0.75
DN20	G3/4”	50.5	304/316L	100	125	0-1MPa	0.75
DN25	G1”	50.5	304/316L	130	130	0-1MPa	1
DN32	G1-1/4”	50.5	304/316L	130	130	0-1MPa	1
DN40	G1-1/2”	64	304/316L	155	165	0-1MPa	2.4
DN50	G2”	77.5	304/316L	160	177	0-1MPa	2.6

sanitary solenoid valve clamp connection valve Normally Closed Valve stainless steel sanitary valve 24V Solenoid Valve tri clamp solenoid valve Food Grade Valve hygienic solenoid valve 220V Solenoid Valve sanitary pneumatic valve

Related Products

2W Threaded Solenoid Valve

4V 210-08 Pneumatic Solenoid Valve

DMF-Pulse Solenoid Valve

Electric Ball Valve

Stainless Steel Flanged Slp Solenoid Valve

Industrial Commercial Gas Emergency Shut off Solenoid Valve Aluminum Alloy Normally Open Explosion Proof Control Valve

Aluminum Alloy Gas Emergency Shut off Solenoid Valve

ZCRB Explosion Proof Solenoid Valve Cast Steel Gas Emergency Shut off Valve

ZCRB Explosion Proof Cast Steel Gas Emergency Shut off Valve

2W Series Diaphragm Brass Water Solenoid Valve

2W Heavy Duty Threaded Solenoid Control Valve

ZCZP Cast Steel Explosion Proof Flanged High Temperature Steam Solenoid Valve Water Solenoid Control Valve

ZCZP Cast Steel Explosion Proof Flanged Solenoid Valve

ZCM Stainless Steel Flanged Solenoid Valve

Slp Series Stainless Steel High Pressure Pilot Operated Normally Open Solenoid Valve Water Flow Control

Slp Pilot Operated Series Normally Open Solenoid Valve

Encapsulated Explosion Proof Solenoid Valve Diaphragm Type Pilot Operated Normally Closed Solenoid Control Valve

SLP Encapsulated Explosion Proof Solenoid Valve

2L Steam Flange Solenoid Valve

ZCG 304 Stainless Steel Flanged Solenoid Valve Explosion Proof High Temp Steam Thermal Oil

4V210-08 Pneumatic Solenoid Valve 2 Position 5 Way DC12V DC24V AC220V

2W Sanitary Quick-Install Polished Solenoid Valve

Quick-Fit Clamp Type Solenoid Valve Polished Food Grade

Mini Brass Electric Ball Valve Two-Wire Control Outdoor Waterproof

Brass Electric Motorized Two Way Ball Valve Normally Open &Closed

2L Steam Flange&Threaded Solenoid Valve

Connection Form	Clamp
Application	Industrial Usage, Water Industrial Usage, Household Usage
Actuator	Solenoid
Protection level	IP55
Function	Normally Closed or Opened
Applicable media	Water,air,oil,etc
Origin	China
Sealing Material	NBR, FKM,Silicone
Specification	DN15-DN50
Warranty	Valve body – 1 year; Accessories – 3 months (coil excluded)

Sanitary Clamp Connection Solenoid Valve Normally Closed 24V 220V
