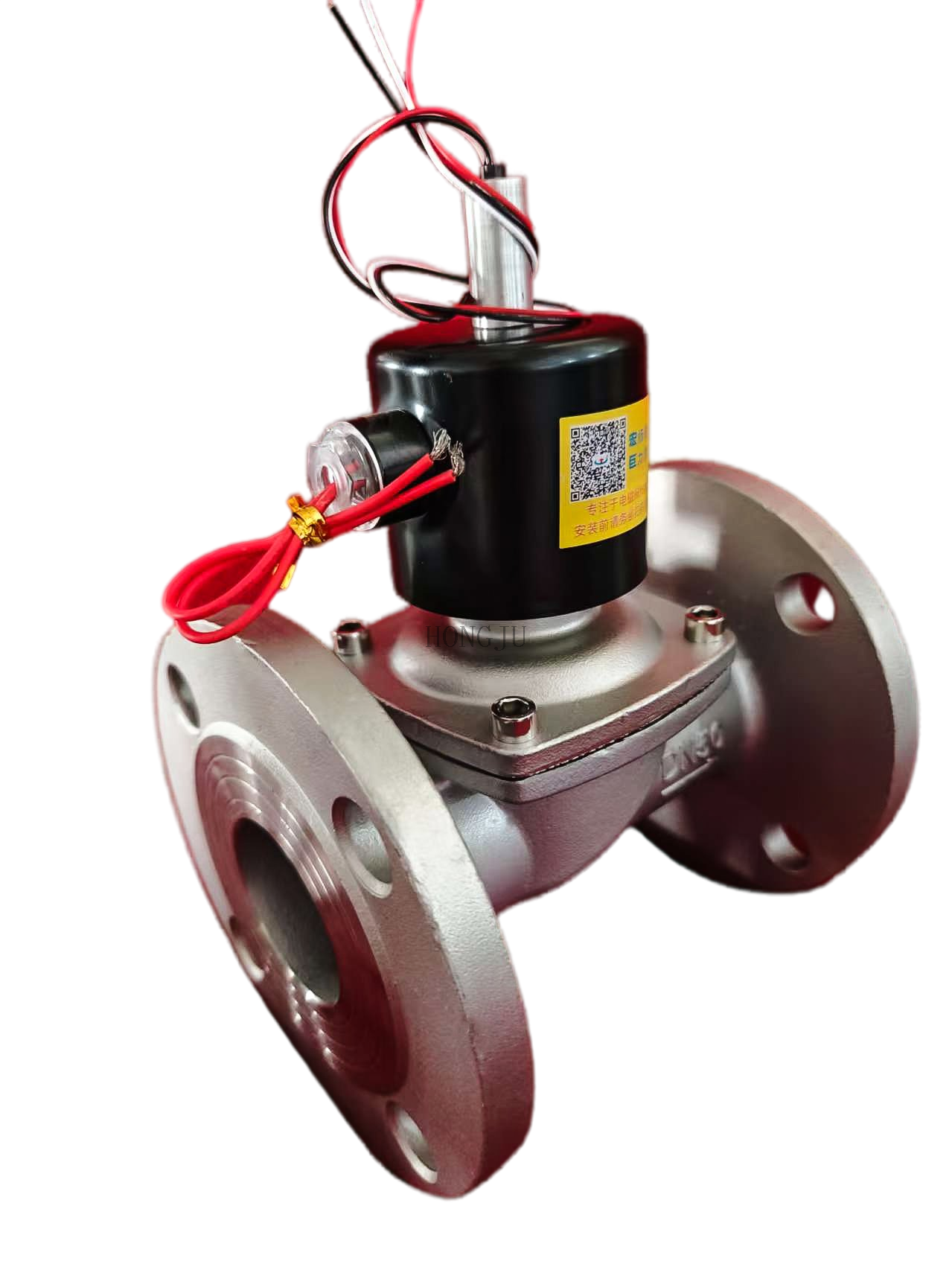

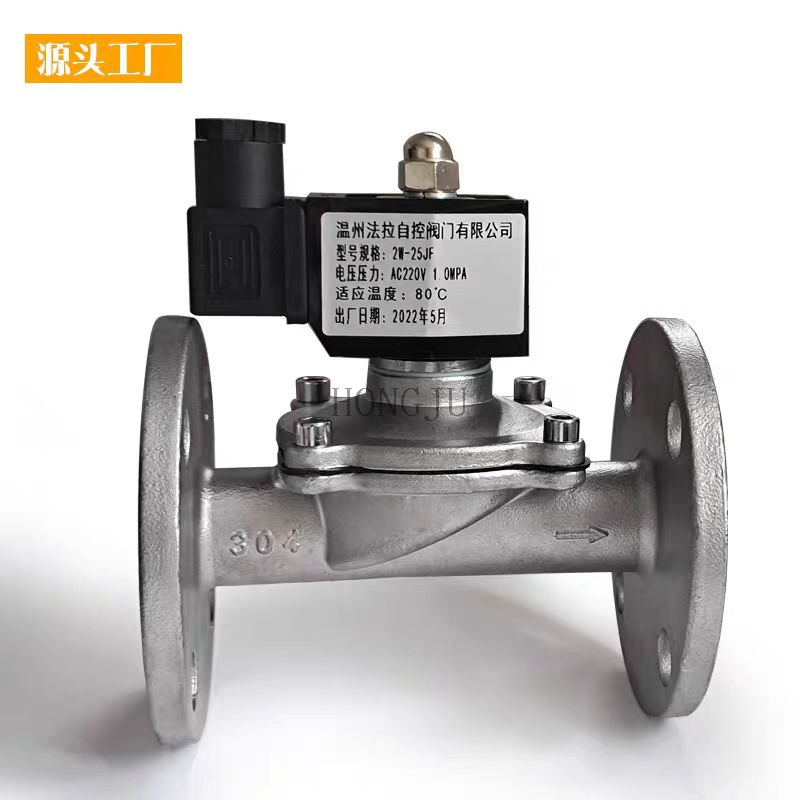

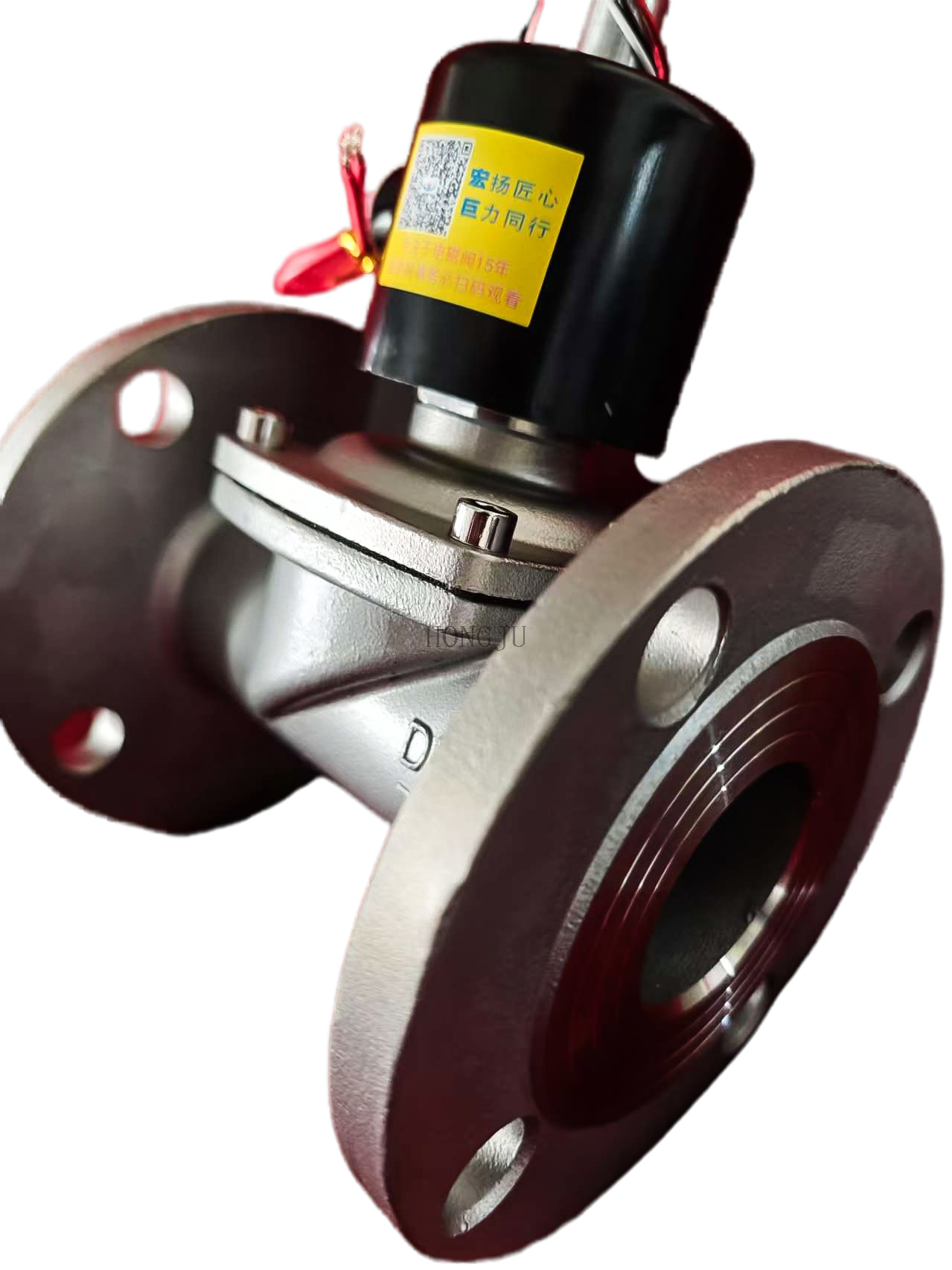

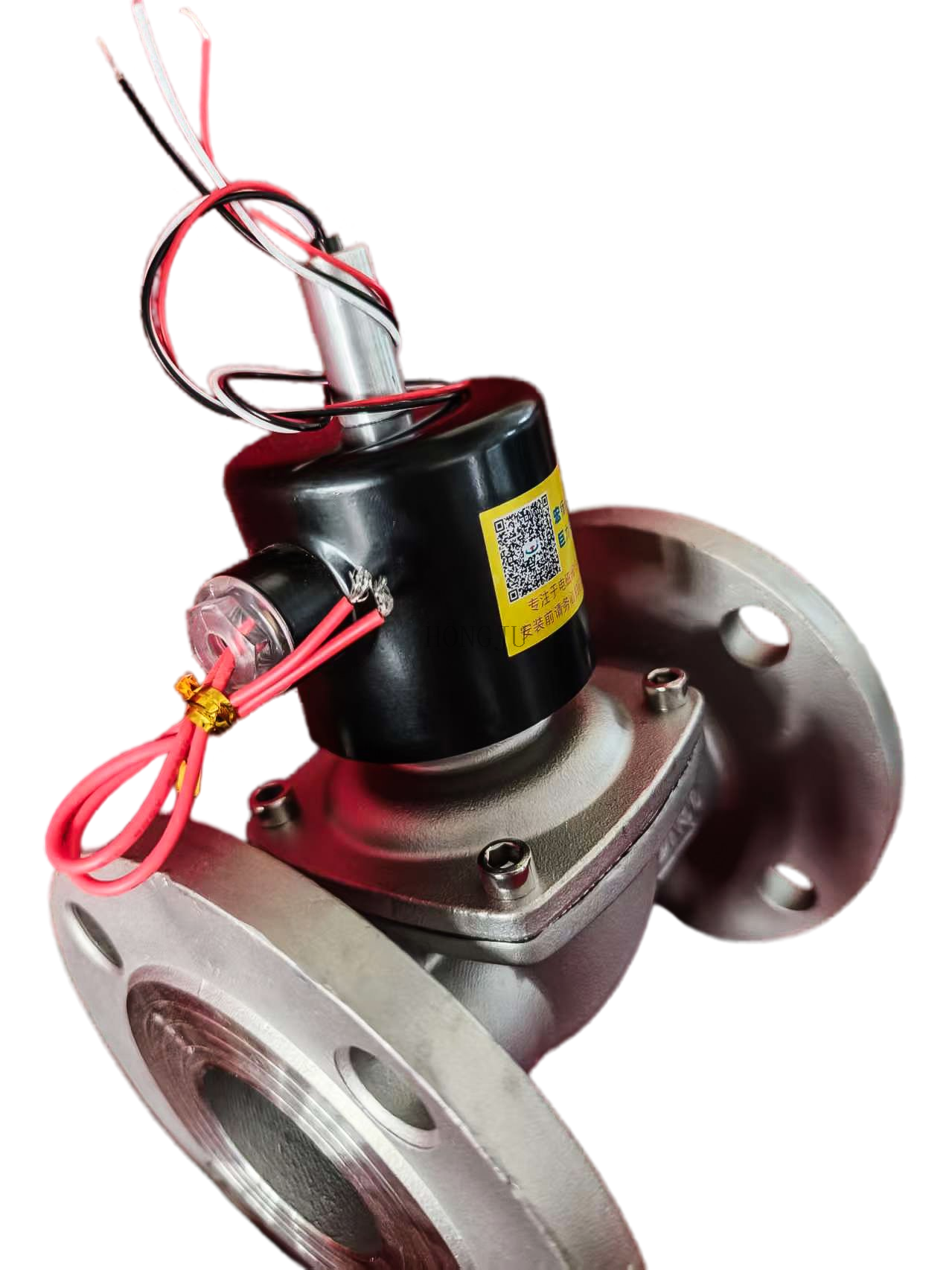

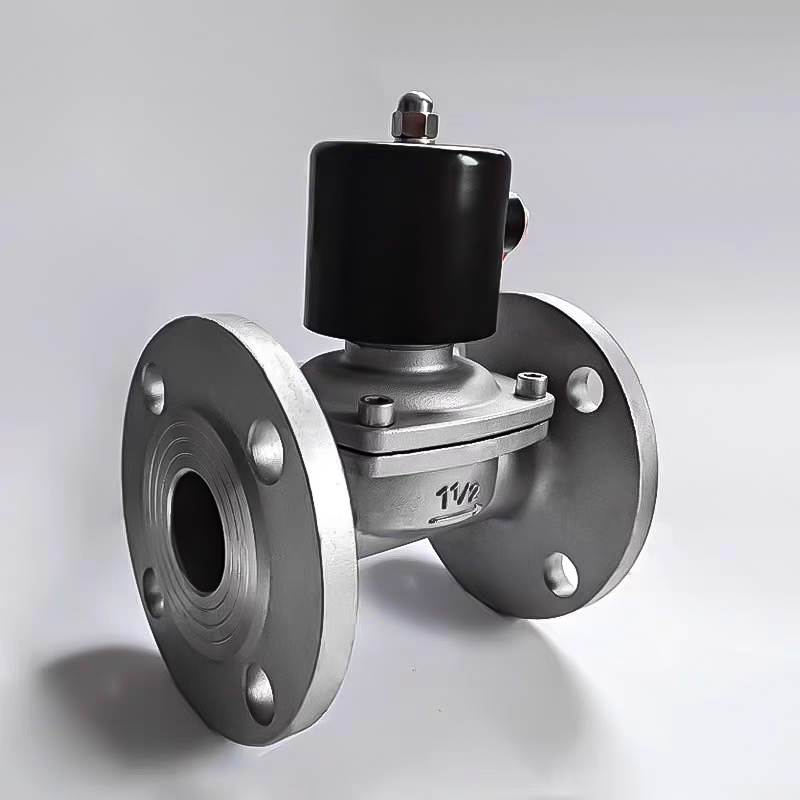

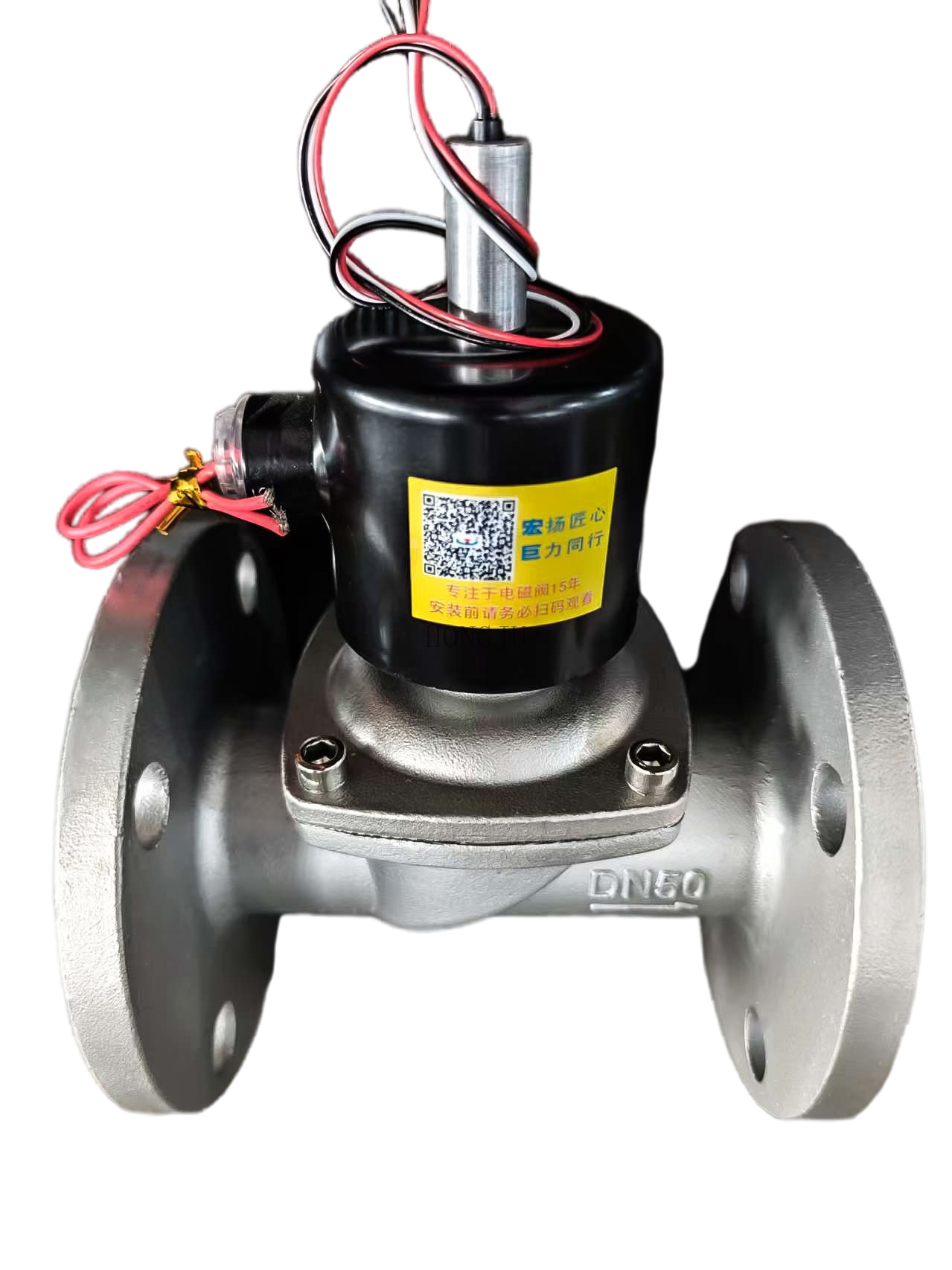

This 2/2 way water solenoid valve is made of durable 304 stainless steel, suitable for reliable water flow control. It supports both 220V and 24V power supply, offering fast response, stable performance, and long-lasting operation in various industrial and domestic applications.
| Size: | |
|---|---|
| Material: | |
| Quantity: | |
2W
HONGJU
Nominal Diameter | Inch Diameter | Material | Length (mm) | Height (mm) | Pressure Resistance | Weight (KG) |
DN15 | G1/2” | 304/316L | 108 | 143 | 0-1MPa | 1.6 |
DN20 | G3/4” | 304/316L | 108 | 148 | 0-1MPa | 1.75 |
DN25 | G1” | 304 | 137 | 155 | 0-1MPa | 2.25 |
DN25 | G1” | 304/316L | 137 | 155 | 0-1MPa | 2.65 |
DN32 | G1-1/4” | 304 | 148 | 171 | 0-1MPa | 3 |
DN32 | G1-1/4” | 304/316L | 148 | 200 | 0-1MPa | 3.69 |
DN40 | G1-1/2” | 304 | 155 | 204 | 0-1MPa | 6.1 |
DN40 | G1-1/2” | 304/316L | 155 | 207 | 0-1MPa | 4.82 |
DN50 | G2” | 304/316L | 170 | 223 | 0-1MPa | 6.2 |
DN50 | G2” | 304 | 185 | 228 | 0-1MPa | 6.5 |
DN65 | G2-1/2” | 304/316L | 225 | 247 | 0-1MPa | 9 |
DN65 | G2-1/2” | 304/316L | 0-1MPa | |||
DN80 | G3” | 304/316L | 260 | 259 | 0.05-1MPa | 12.3 |
DN80 | G3” | 304/316L | 0.05-1MPa | |||
DN100 | G4” | 304/316L | 320 | 288 | 0.05-1MPa | 18 |
DN100 | G4” | 304/316L | 0.05-1MPa | |||
DN125 | G5” | 304 | 350 | 336 | 0.05-1MPa | 27 |
DN150 | G6” | 304 | 420 | 400 | 0.05-1MPa | 40 |
DN200 | G8” | 304 | 520 | 480 | 0.05-1MPa | 61 |
