ZCG
HONGJU

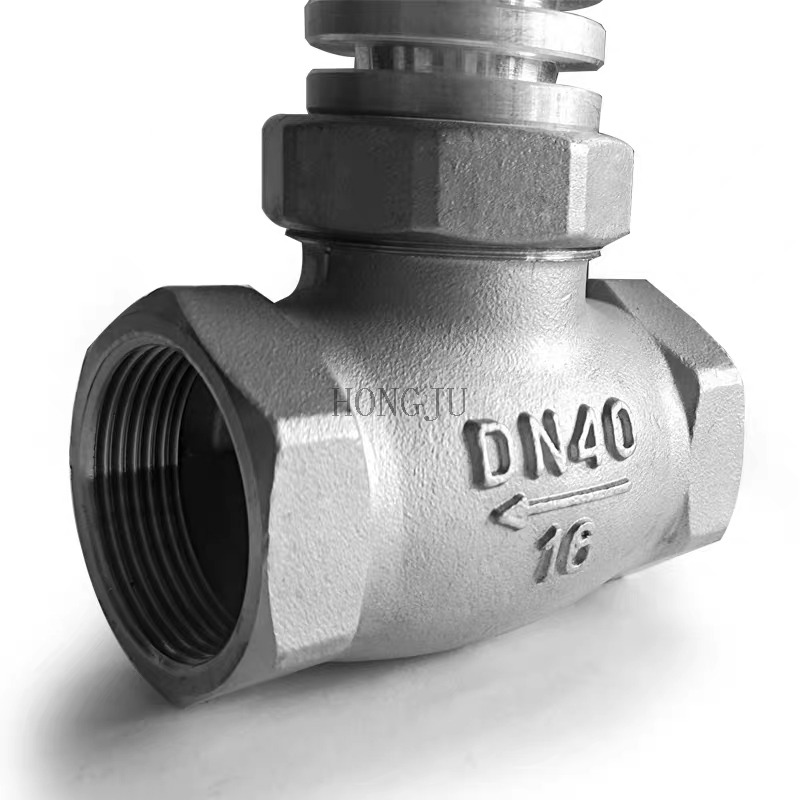

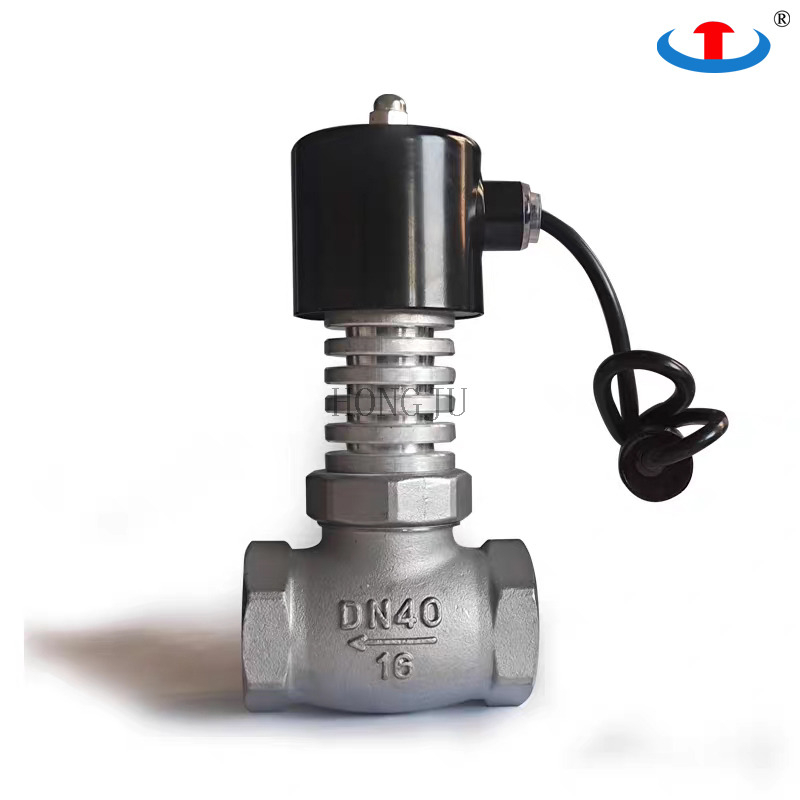

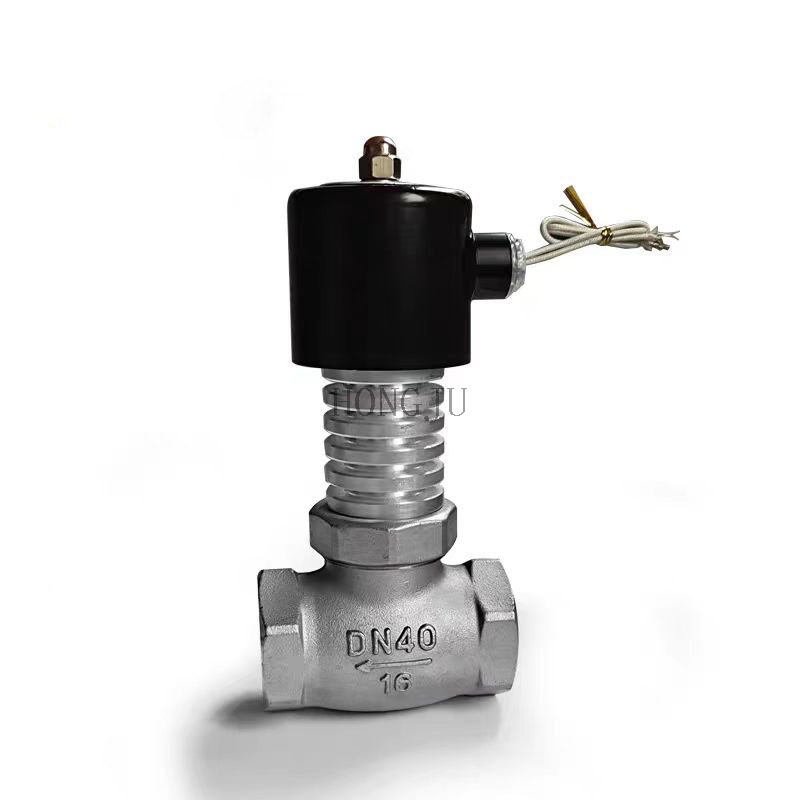

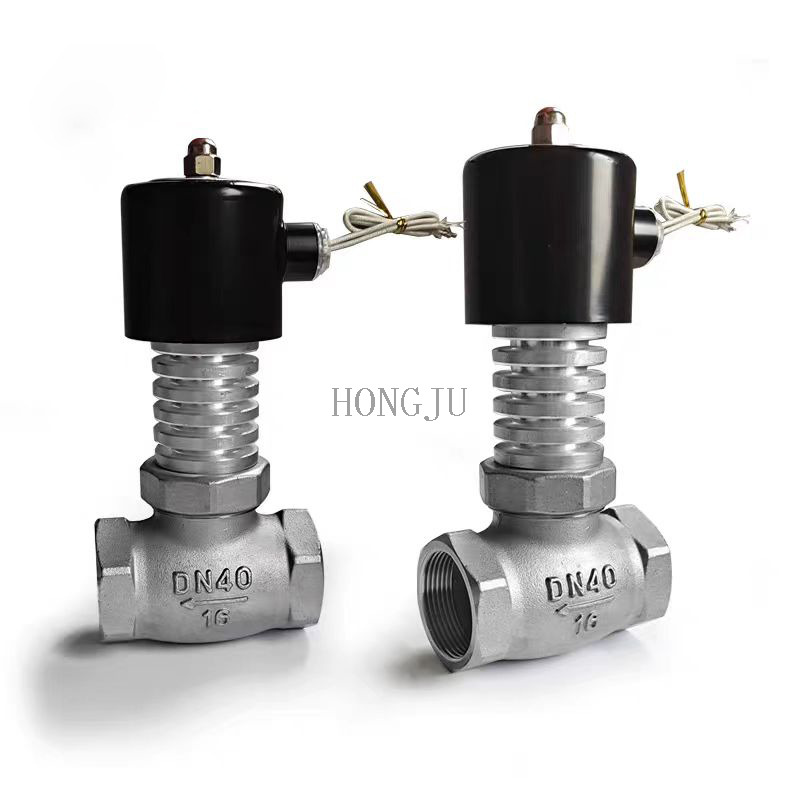

The ZCG series piston-type steam solenoid valve is engineered for high-temperature and high-pressure steam applications. Utilizing a durable piston structure, it ensures stable operation, excellent sealing, and extended service life, even under demanding conditions. The valve body is made from stainless steel, and is equipped with heat-resistant sealing materials to withstand steam temperatures up to 300 °C or higher. Ideal for industrial boilers, heating systems, and process steam control, the ZCG series delivers reliable performance and easy maintenance.
Nominal Diameter | Inch Diameter | Material | Length(mm) | Height(mm) | Pressure Resistance | Weight(KG) |
DN15 | G1/2” | 304 | 80 | 185 | 0.05-1.6MPa | 1.55 |
DN20 | G3/4” | 304 | 85 | 185 | 0.05-1.6MPa | 1.6 |
DN25 | G1” | 304 | 90 | 195 | 0.05-1.6MPa | 1.75 |
DN32 | G1-1/4” | 304 | 100 | 205 | 0.05-1.6MPa | 2.15 |
DN40 | G1-1/2” | 304 | 105 | 210 | 0.05-1.6MPa | 2.3 |
DN50 | G2” | 304 | 120 | 230 | 0.05-1.6MPa | 3.2 |
Connection Form | Threaded |
Application | Industrial Usage, Water Industrial Usage, Household Usage |
Structure | Piston type |
Protection level | IP55 |
Function | Normally Closed |
Applicable media | Steam,thermal oil,etc |
Origin | China |
Sealing Material | PTFE |
Specification | DN15-DN50 |
Warranty | Valve body – 1 year; Accessories – 3 months (coil excluded) |
Material | Stainless steel |
