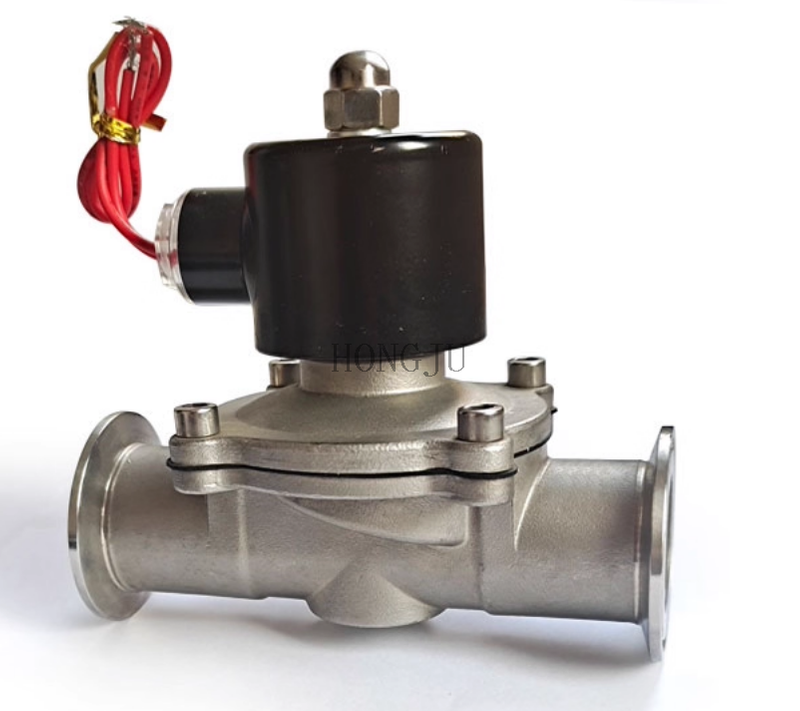

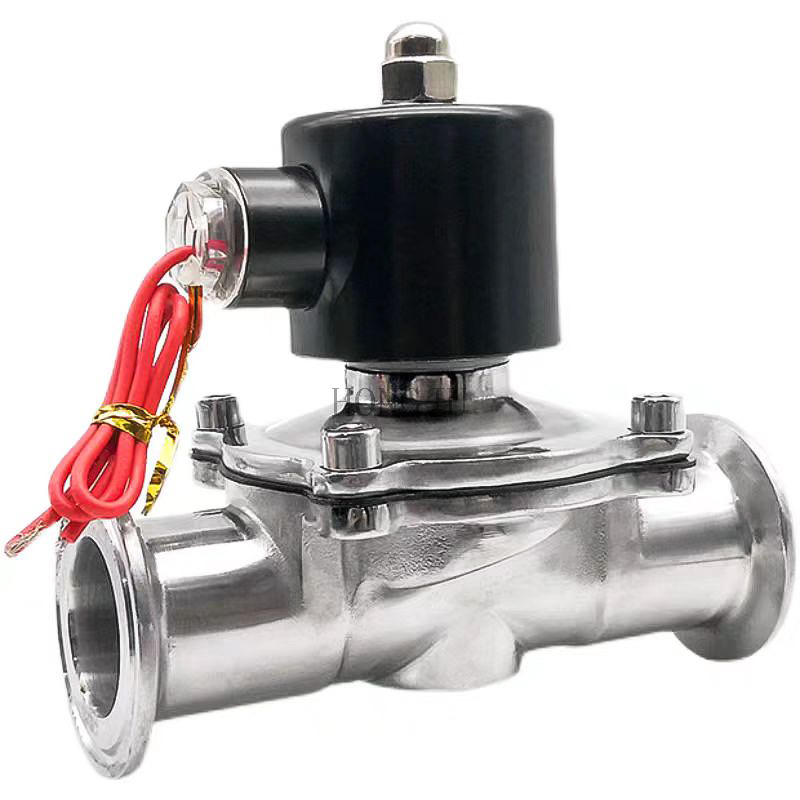

2 Way Sanitary Stainless Steel Polished Pipeline Solenoid Water Valve 220V 24V

This 2-way sanitary stainless steel solenoid valve features a polished surface and hygienic design, ideal for water and liquid control in food, beverage, and pharmaceutical pipelines. It ensures reliable performance, corrosion resistance, and easy cleaning for sanitary systems.

Size:
DN15-DN50
Material:
Stainless steel
Availability:
Quantity:
Inquire Add to Basket

  • 2W

  • HONGJU

Nominal Diameter

Inch Diameter

Chuck Outer Diameter

Material

Length

(mm)

Height

(mm)

Pressure Resistance

Weight

(KG)

DN15

G1/2”

50.5

304/316L

100

125

0-1MPa

0.75

DN20

G3/4”

50.5

304/316L

100

125

0-1MPa

0.75

DN25

G1”

50.5

304/316L

130

130

0-1MPa

1

DN32

G1-1/4”

50.5

304/316L

130

130

0-1MPa

1

DN40

G1-1/2”

64

304/316L

155

165

0-1MPa

2.4

DN50

G2”

77.5

304/316L

160

177

0-1MPa

2.6


Connection Form

Clamp

Application

Industrial Usage, Water Industrial Usage, Household Usage

Actuator

Solenoid

Protection level

IP55

Function

Normally Closed or Opened

Applicable media

Water,air,oil,etc

Origin

China

Sealing Material

NBR, FKM,Silicone

Specification

DN15-DN50

Warranty

Valve body – 1 year;

Accessories – 3 months

(coil excluded)


The sanitary solenoid valve is an indispensable component in industries like pharmaceuticals and food processing,

where strict hygiene and high standards are paramount. Crafted from premium 304 and 316 stainless steel, the valve body ensures unparalleled durability and robustness. The sealing material, primarily silicone rubber and polytetrafluoroethylene, provides excellent resistance and longevity.
